Self-Service Guide to SAML 2.0 SSO Configuration for Okta, OneLogin and Azure

Table of Contents

Introduction

What is SAML?

What is SSO?

Benefits of SAML 2.0 SSO

Configure SAML 2.0 SSO for Okta

Configure SAML 2.0 SSO for OneLogin

Configure SAML 2.0 SSO for Azure



Introduction

Cybrary provides a seamless one-click sign-in experience using your existing SSO provider (Okta, Onelogin, Azure). This self-service integration can be easily configured using the industry standard SAML 2.0.

What is SAML?

Security Assertion Markup Language (SAML) provides the user with online security and enables the user to access multiple web applications using one set of login credentials. It works by passing authentication information in a particular format between two parties, usually an identity provider (idP) and a web application.

What is SSO?

Single sign-on (SSO) is an authentication method that enables users to securely authenticate with multiple applications and websites by using just one set of credentials.

Benefits of SAML 2.0 SSO

• Increased security
• Easy off-boarding
• No more forgotten passwords
• It improves the user experience as you only need to sign in once to access multiple web applications (No need to remember multiple sets of credentials)
• Speeds up the authentication process

Configure SAML 2.0 SSO for Okta

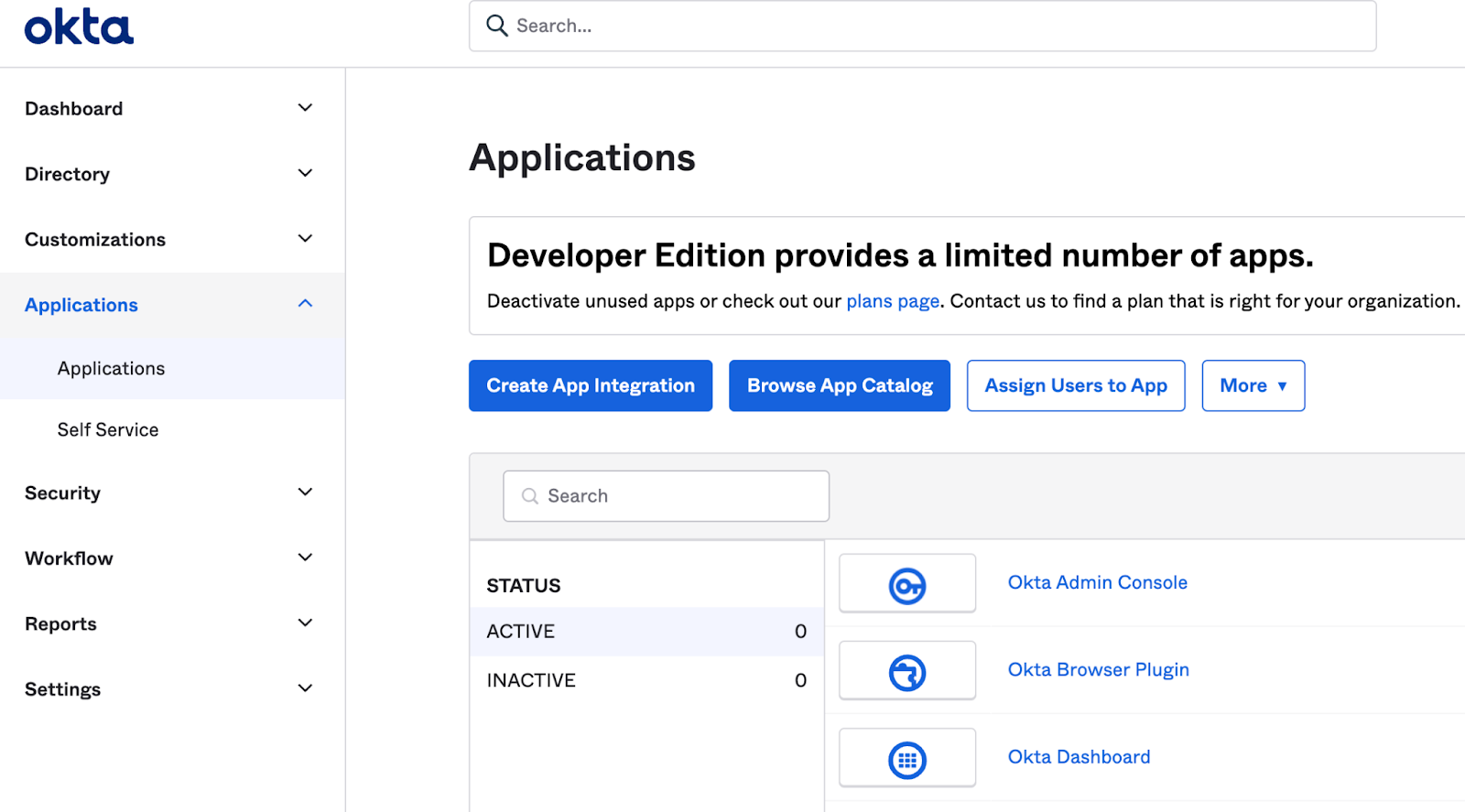

1. In your Okta Application navigate to the Applications -> Applications option on the

left nav and select Create App Integration.

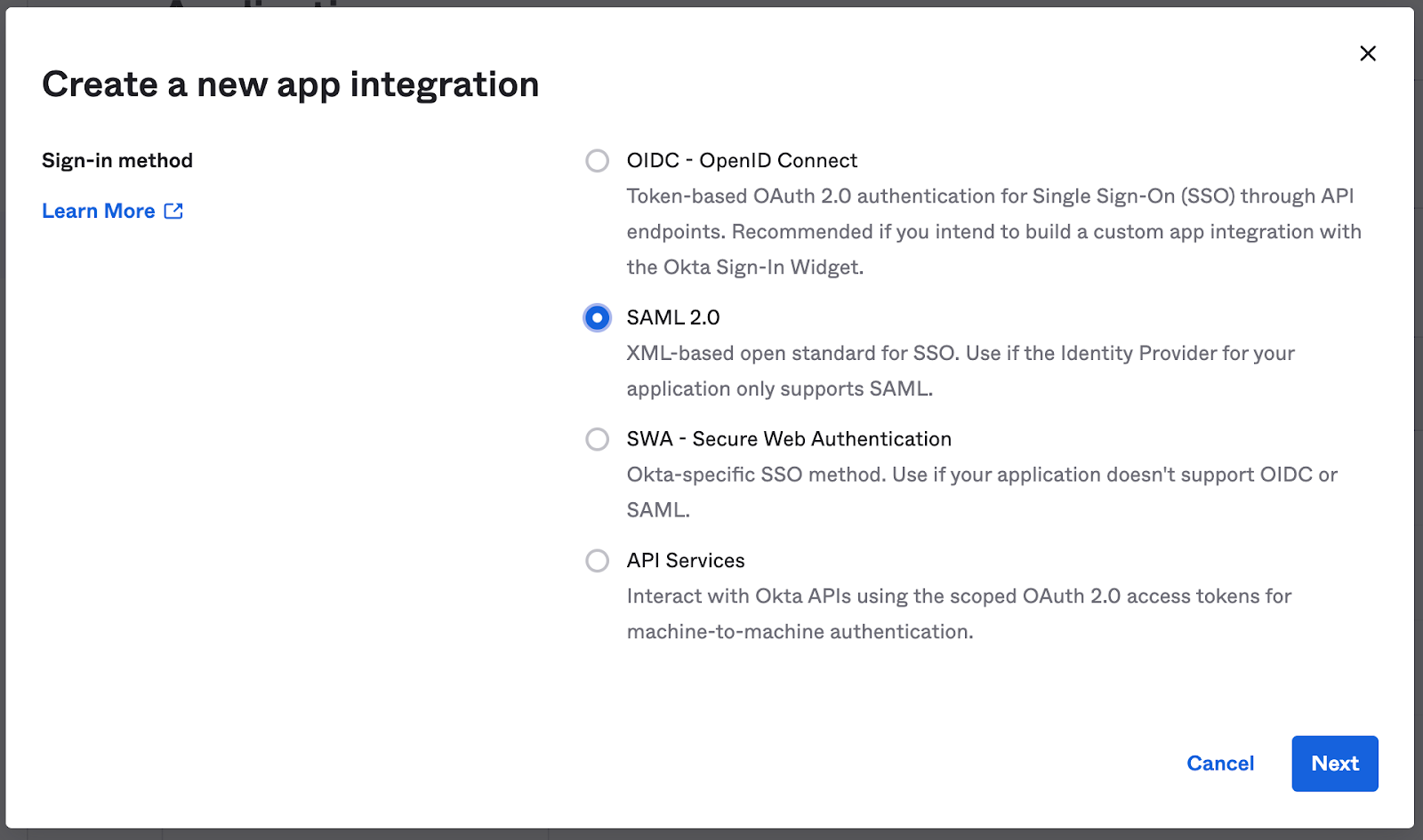

2. Select the SAML 2.0 option and click Next.

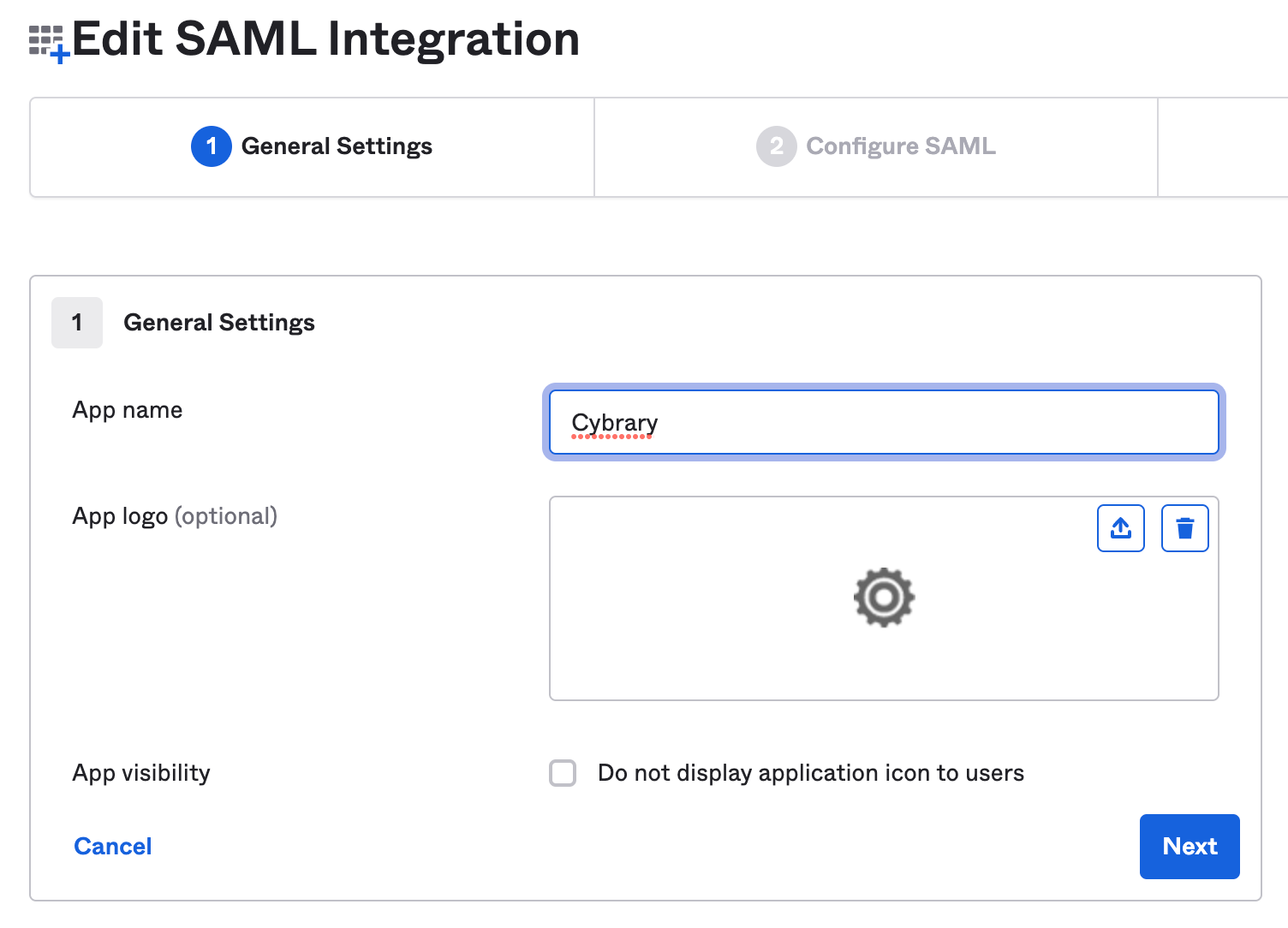

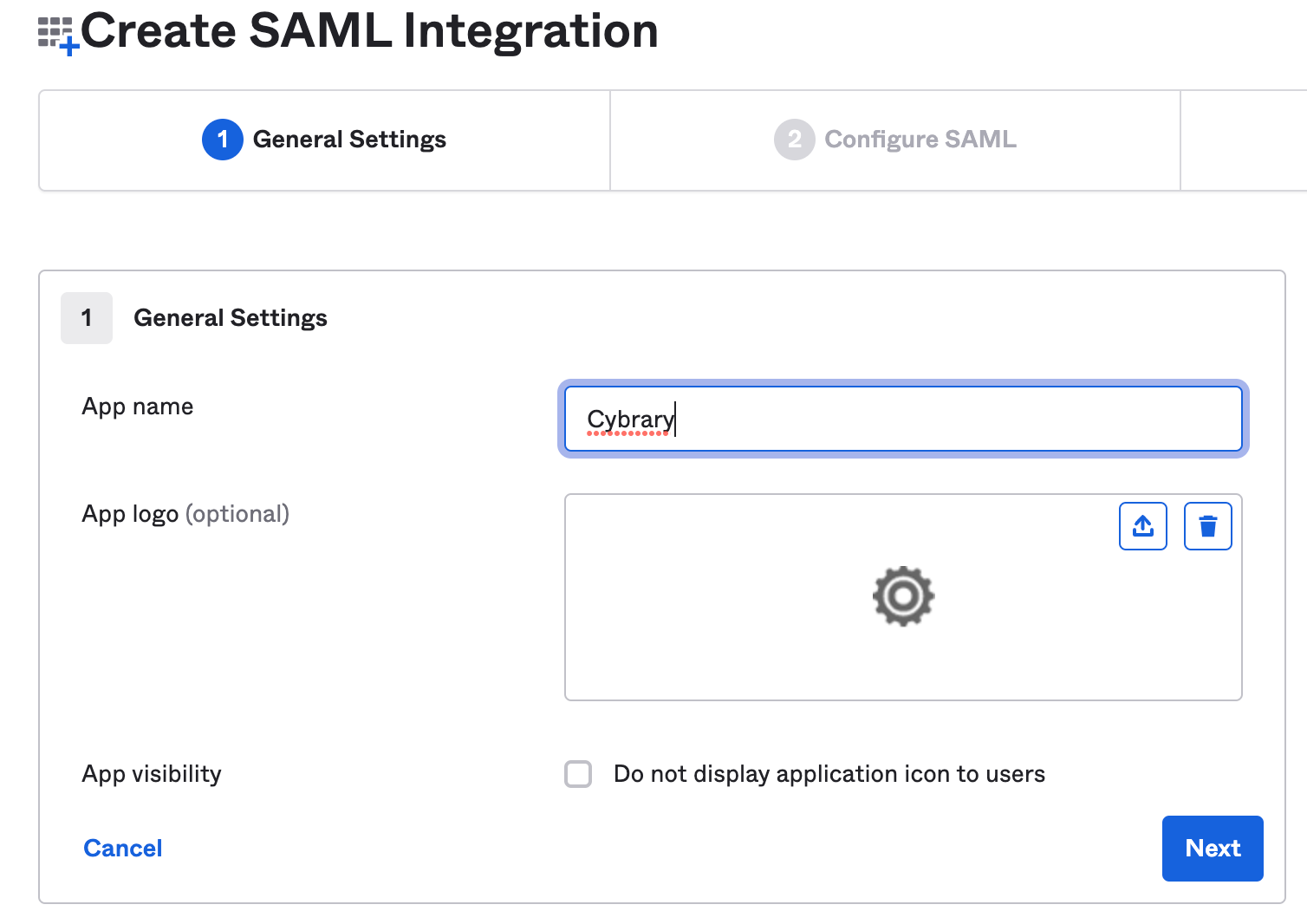

3. Enter an App name (eg. Cybrary) and click Next.

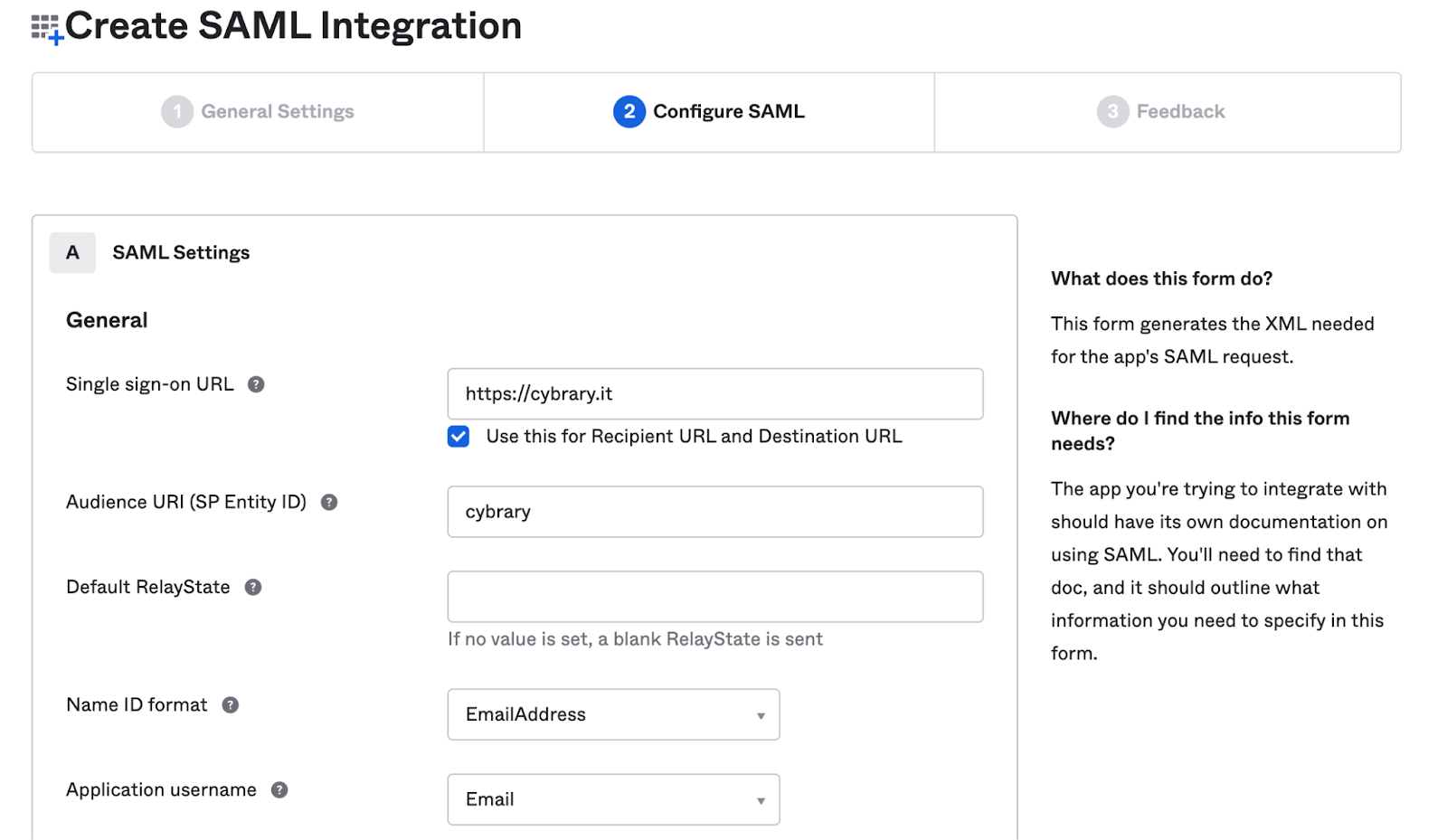

4. For Single sign-on URL enter https://cybrary.it and for Audience URI enter cybrary; these are temporary values that will be updated later on.  Set Name ID format to EmailAddress and Application username to Email.

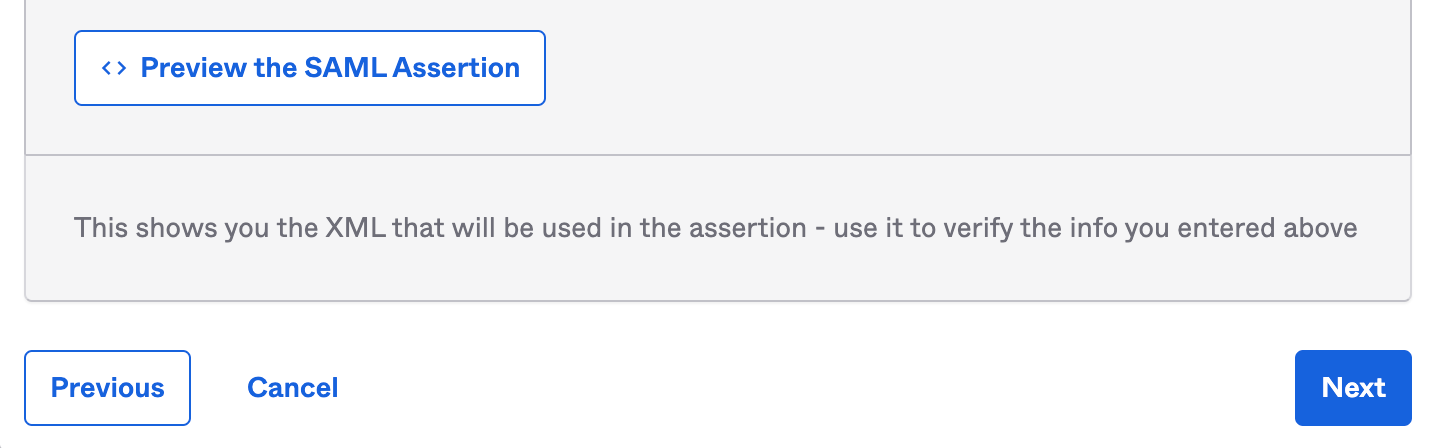

5. Scroll down to the bottom and click the Next button.

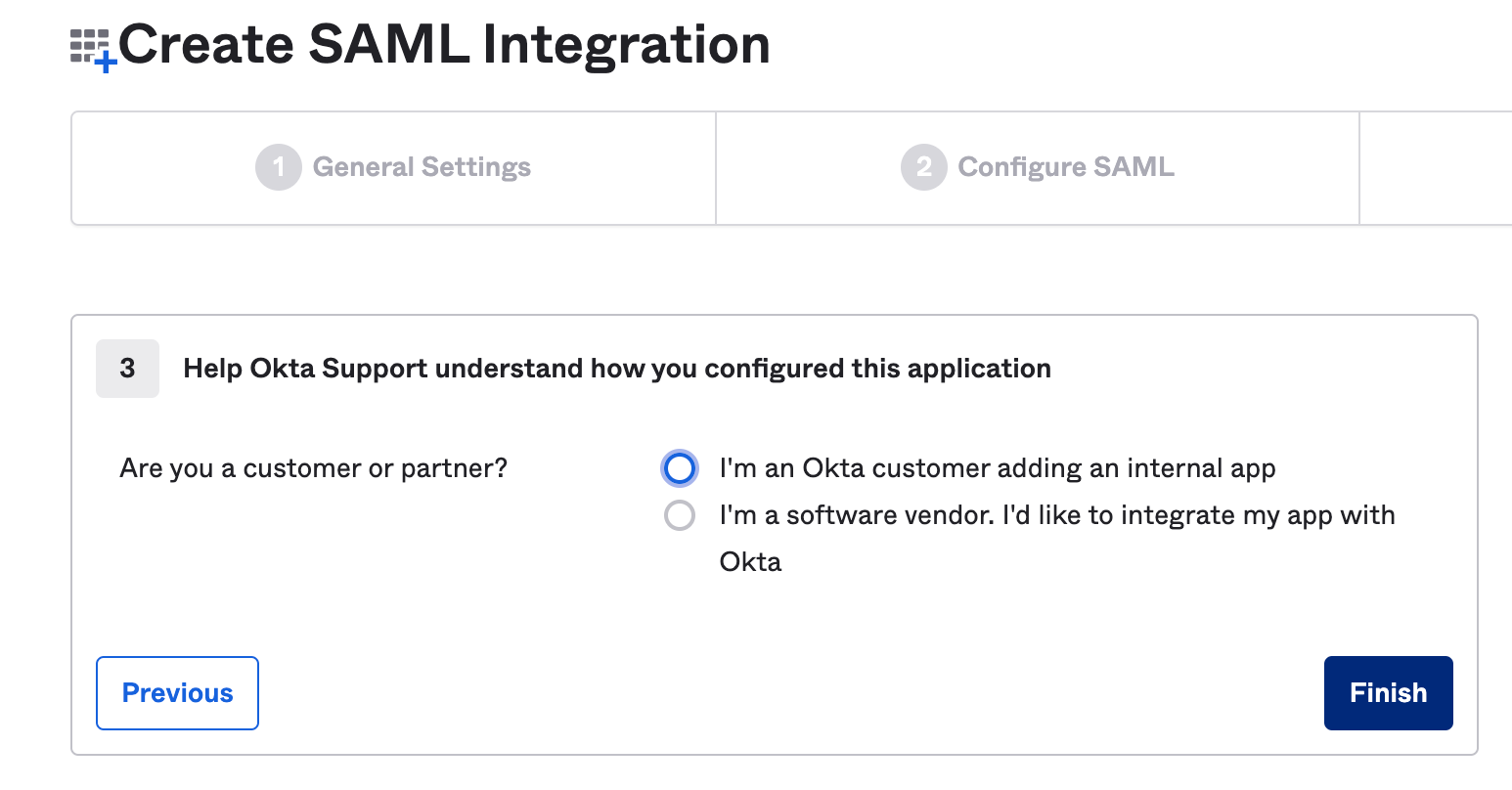

6. Select the first option: I’m an Okta customer adding an internal app. You can ignore the rest of the questions that appear, just scroll to the bottom and click Finish.

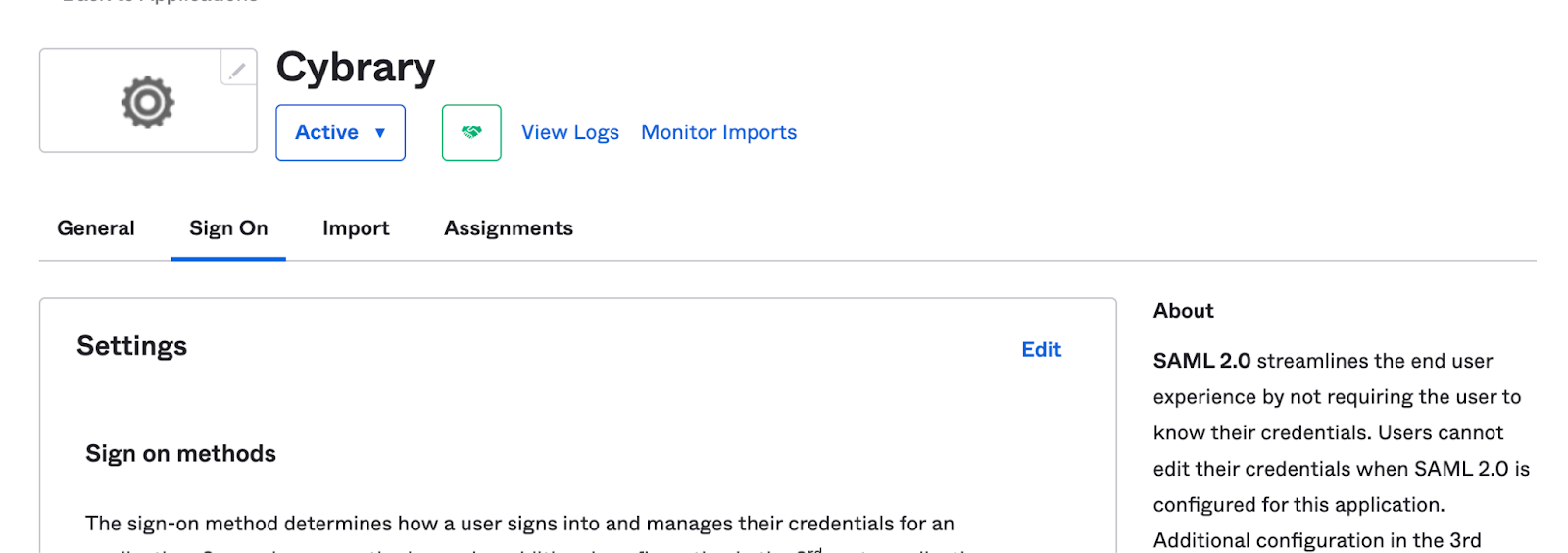

7. The Okta SSO application has now been created, now you need to update your team’s SSO configuration in the Cybrary app.  Navigate to the Sign On tab.

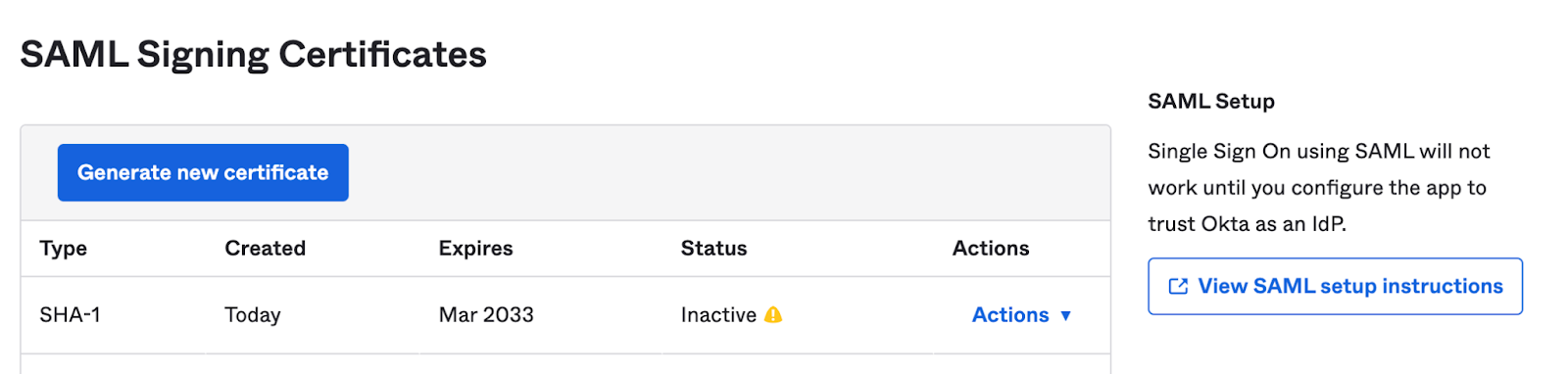

8. Scroll down until you see the SAML Setup section on the right.  Click View SAML setup instructions.

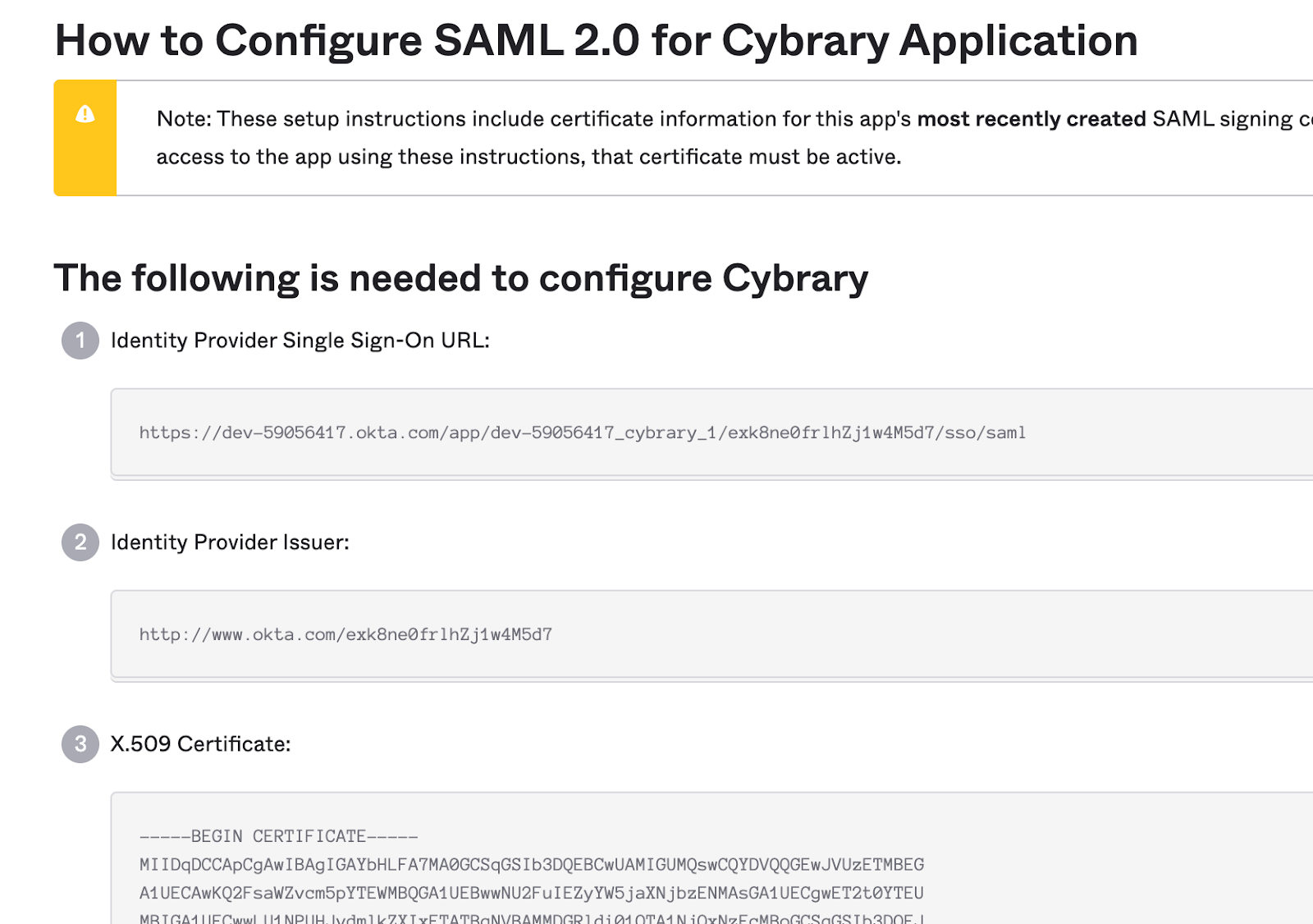

9. This page contains information you will need to copy over to the Cybrary app to enable SSO.  Leave it open and open a new tab/window.

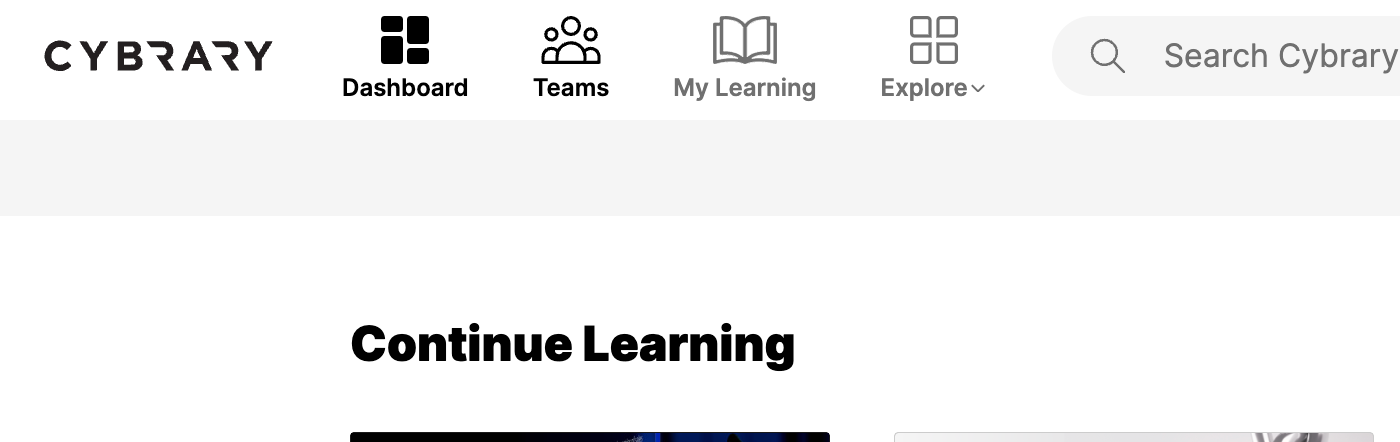

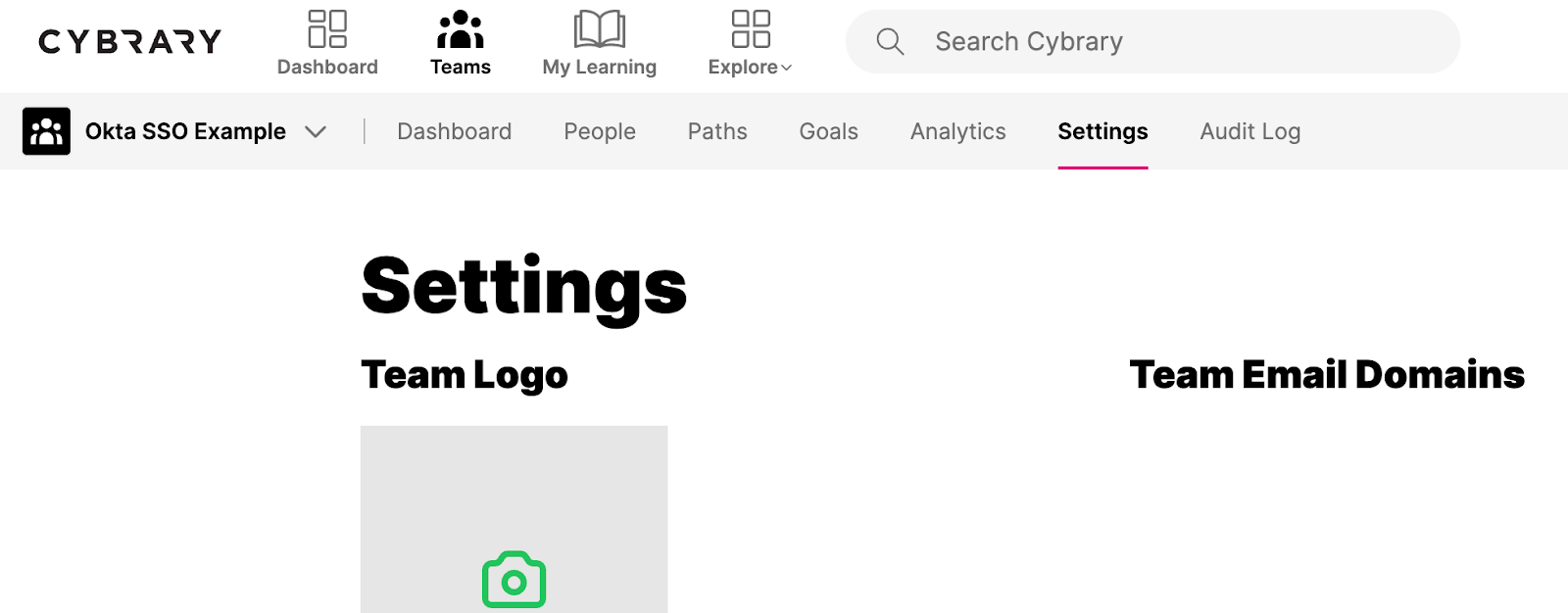

10. In the new tab/window, log in to https://app.cybrary.it and click on Teams in the top navigation.

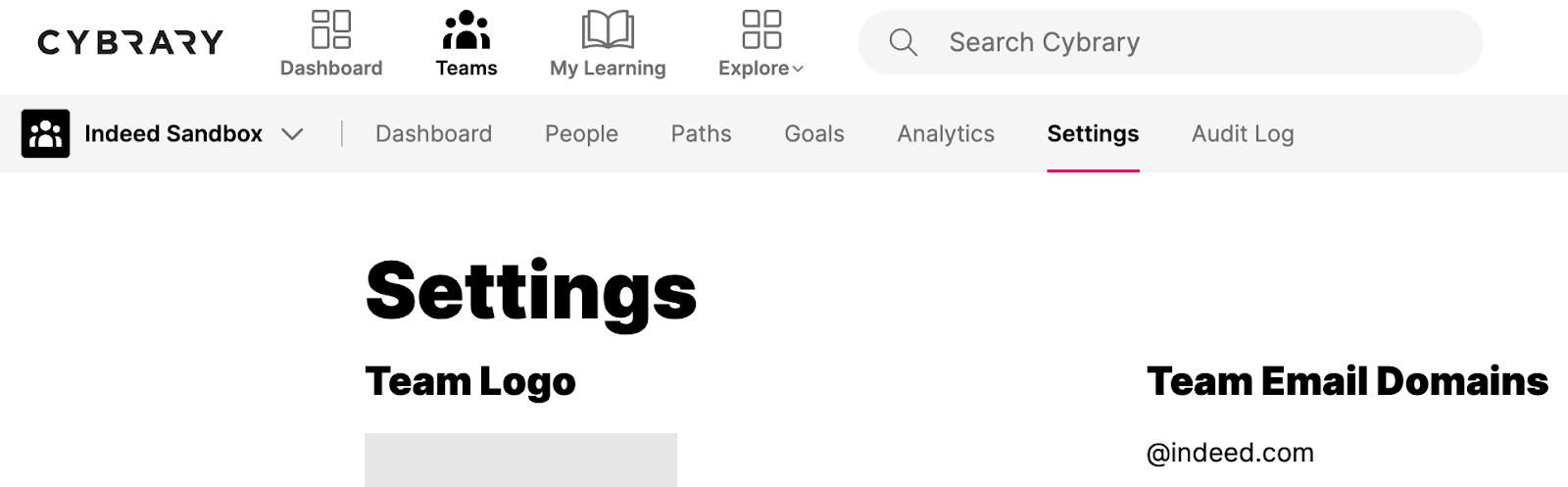

11. If you are an admin on more than one team, make sure the correct team is selected in the drop down on the top left.  Click on Settings in the secondary to navigation.

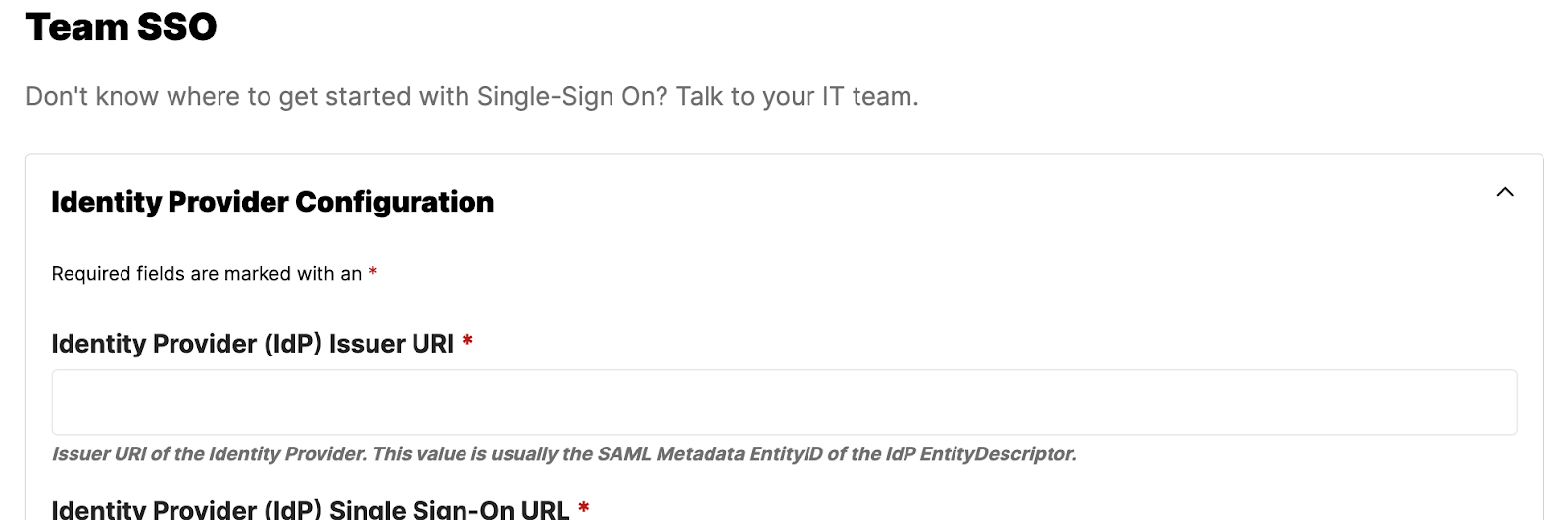

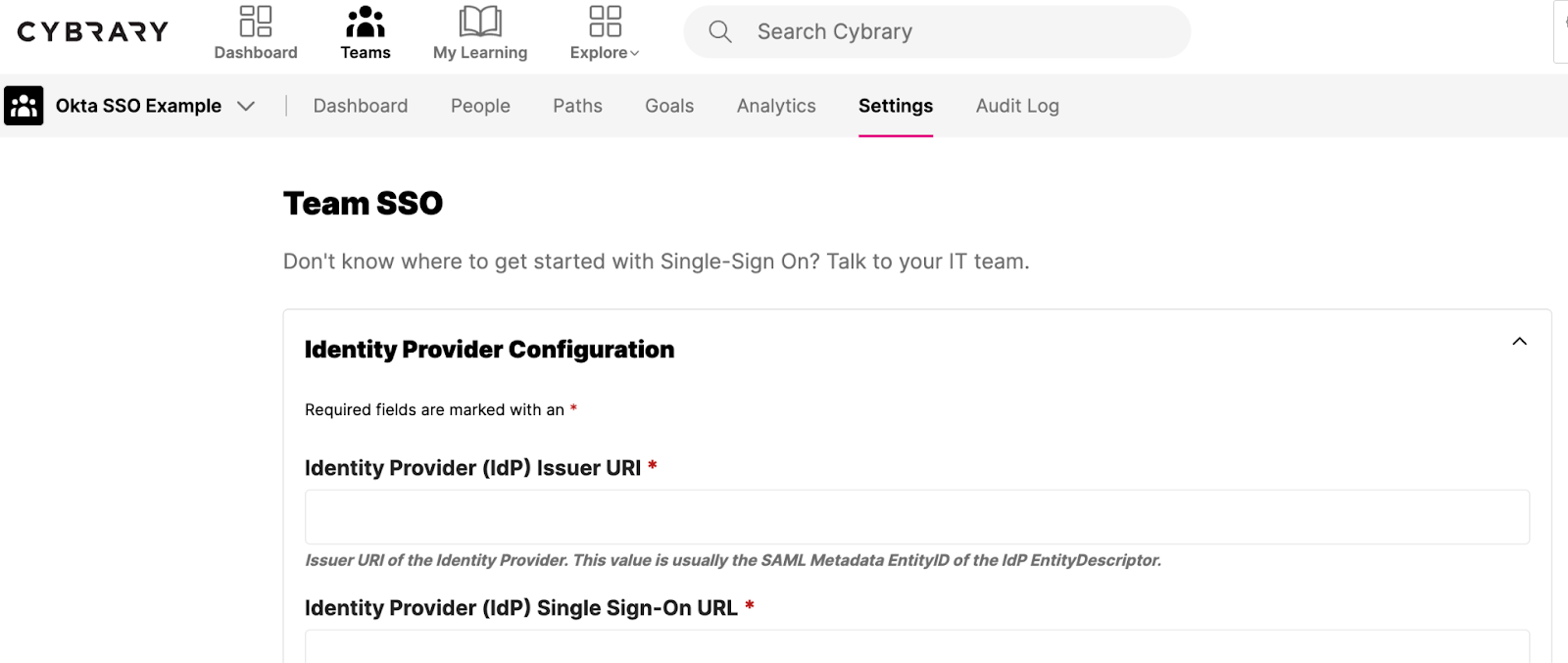

12. Scroll down to Identity Provider Configuration in the Team SSO section.

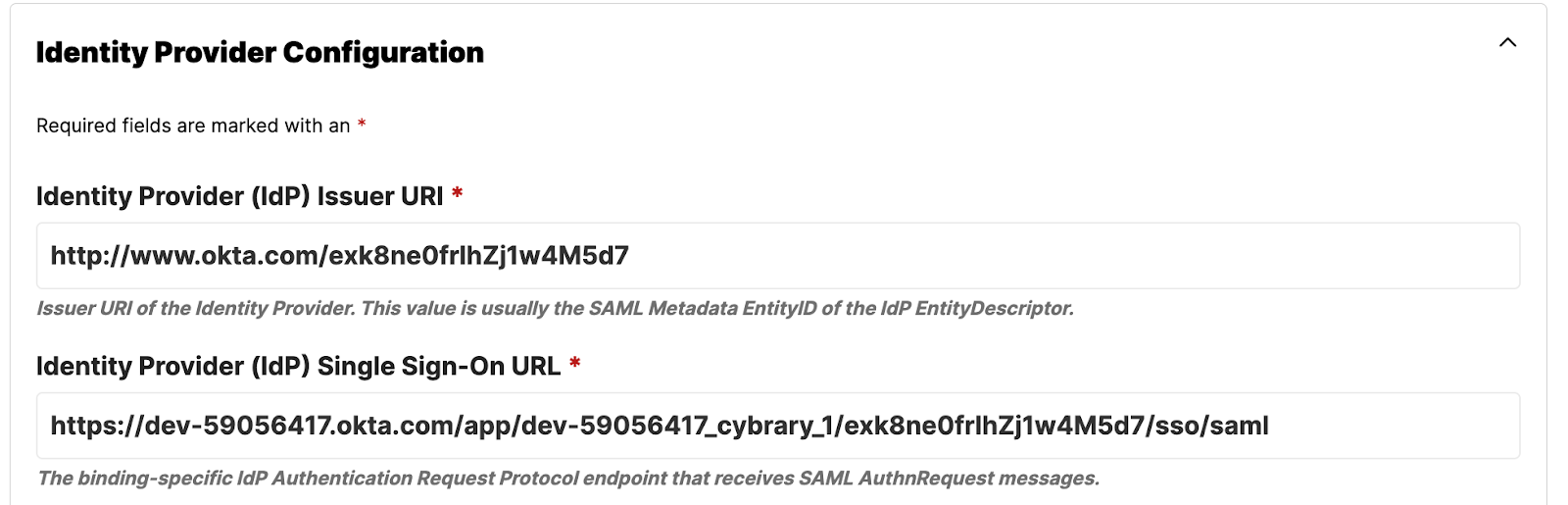

13.  Enter the Identity Provider (IdP) Issuer URI and the Identity Provider (IdP) Single Sign-On URL, which can be found on the Okta page you left open.  Make sure you enter the correct value for each field by matching the field names.

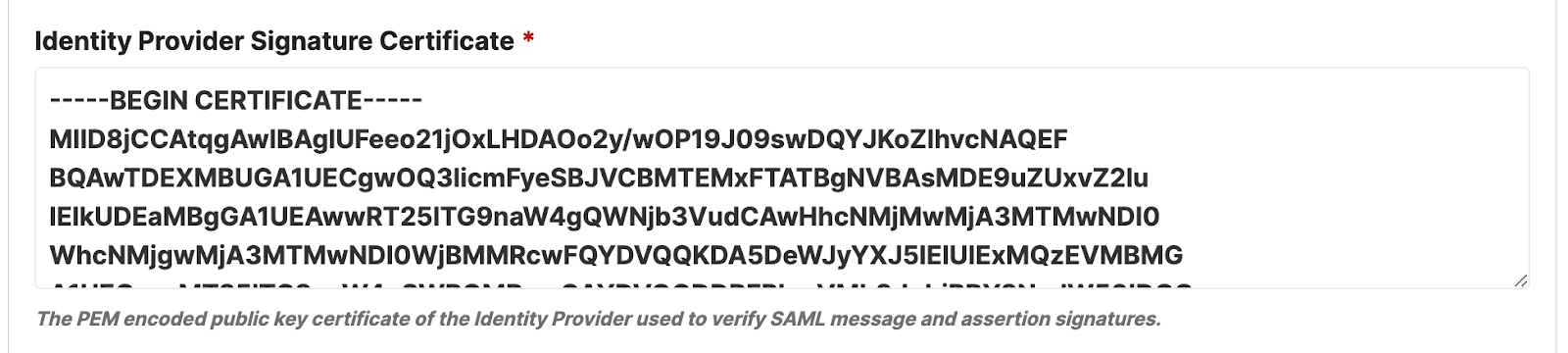

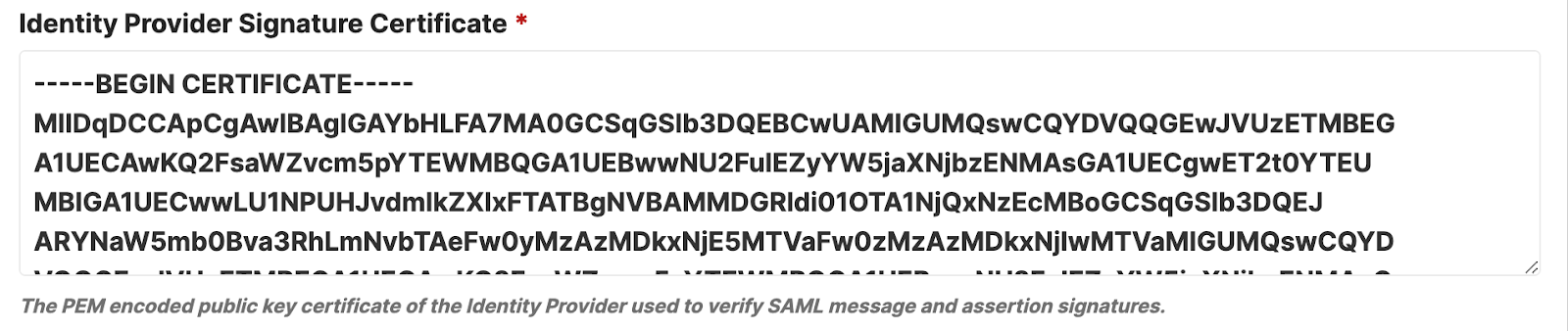

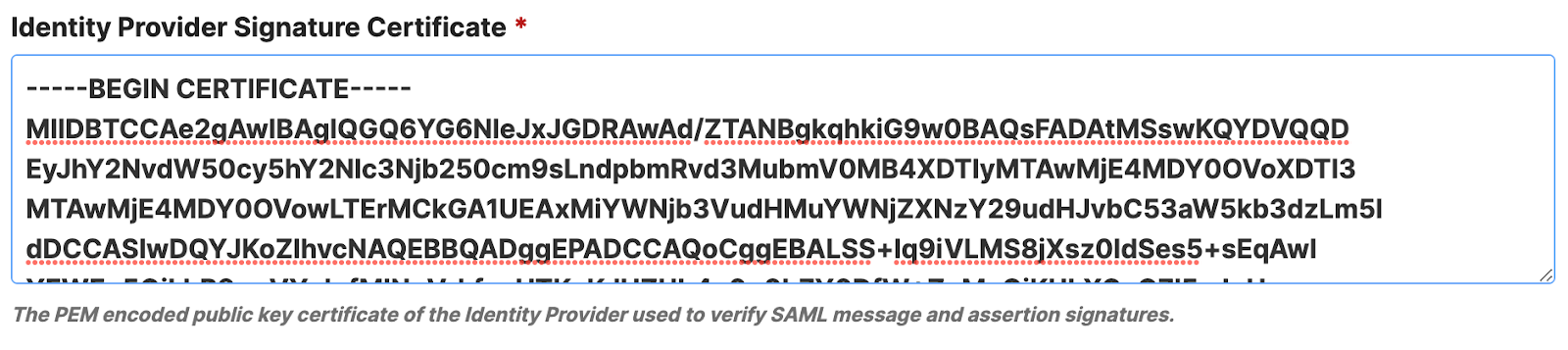

14. Copy the entire X.509 Certificate text (including -----BEGIN CERTIFICATE----- and -----END CERTIFICATE-----) from the Okta page to the Identity Provider Signature Certificate text area in the Cybrary app.



15. Check the Sign AuthN Requests option and click Submit.  The page will refresh.

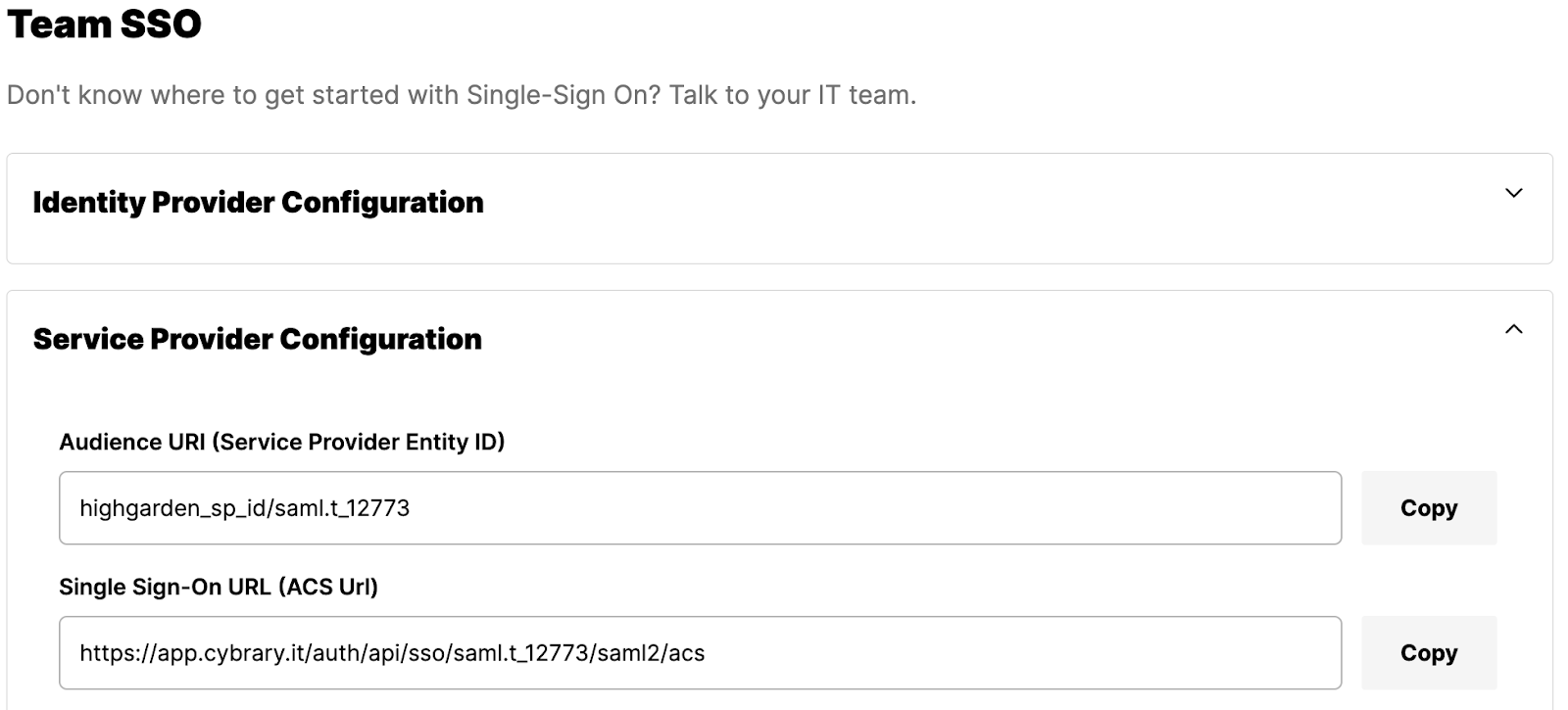

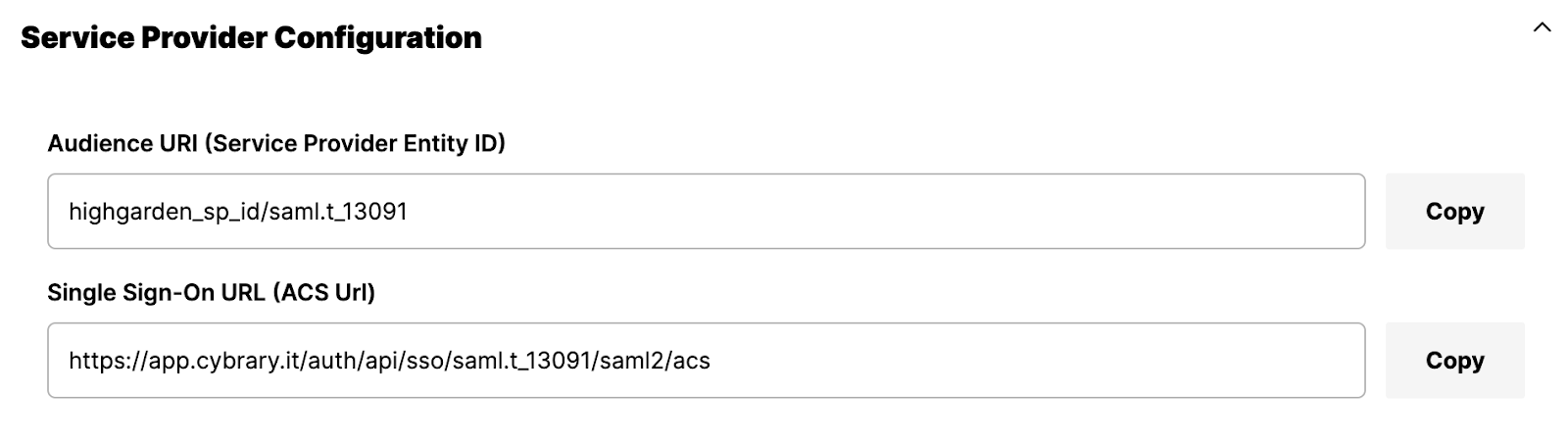

16. Scroll down to the Service Provider Configuration section in the Team SSO Section.  You will need to copy these values over to the Okta app.  Leave this page open.

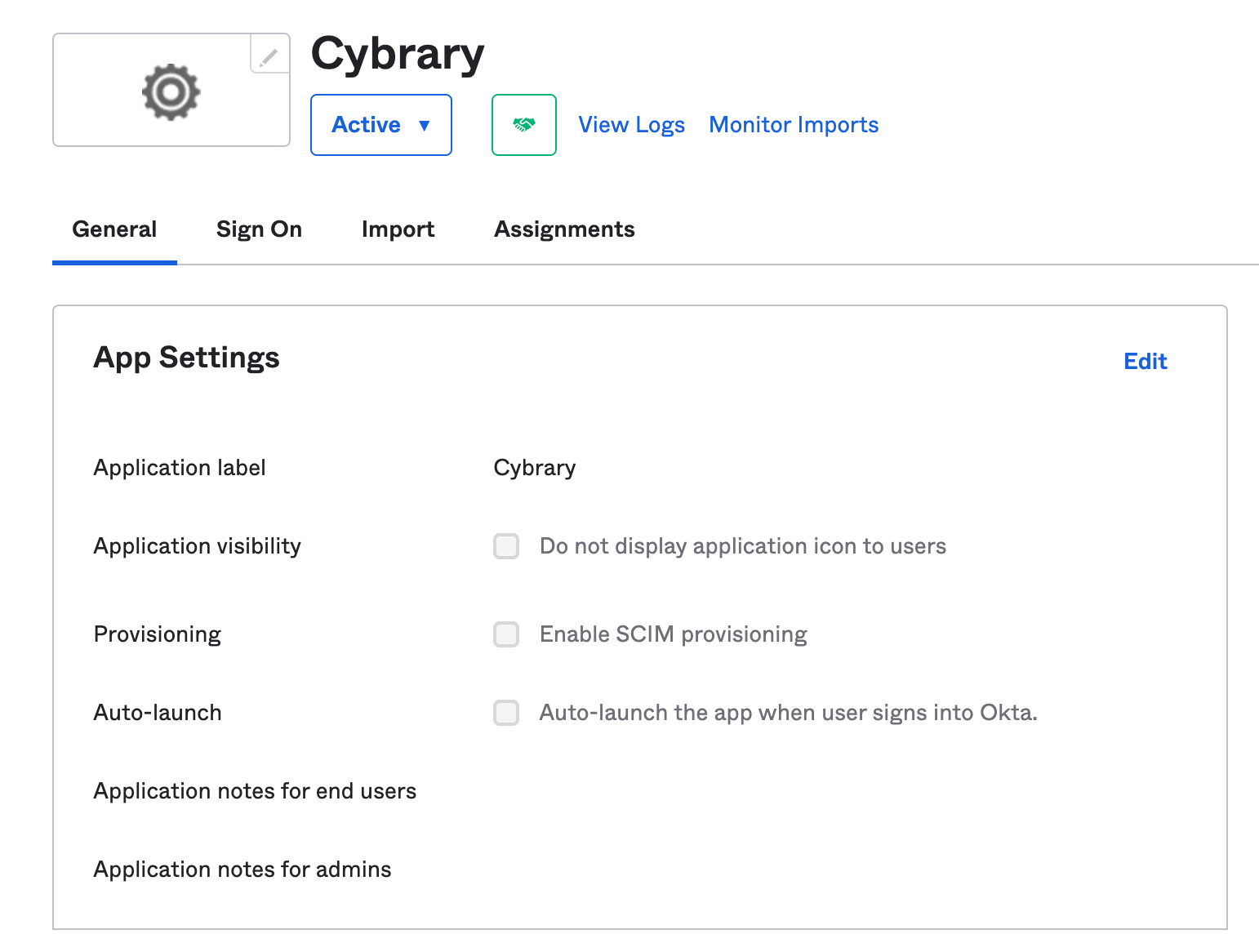

17. Back in the Okta SSO application configuration, navigate to the General tab.

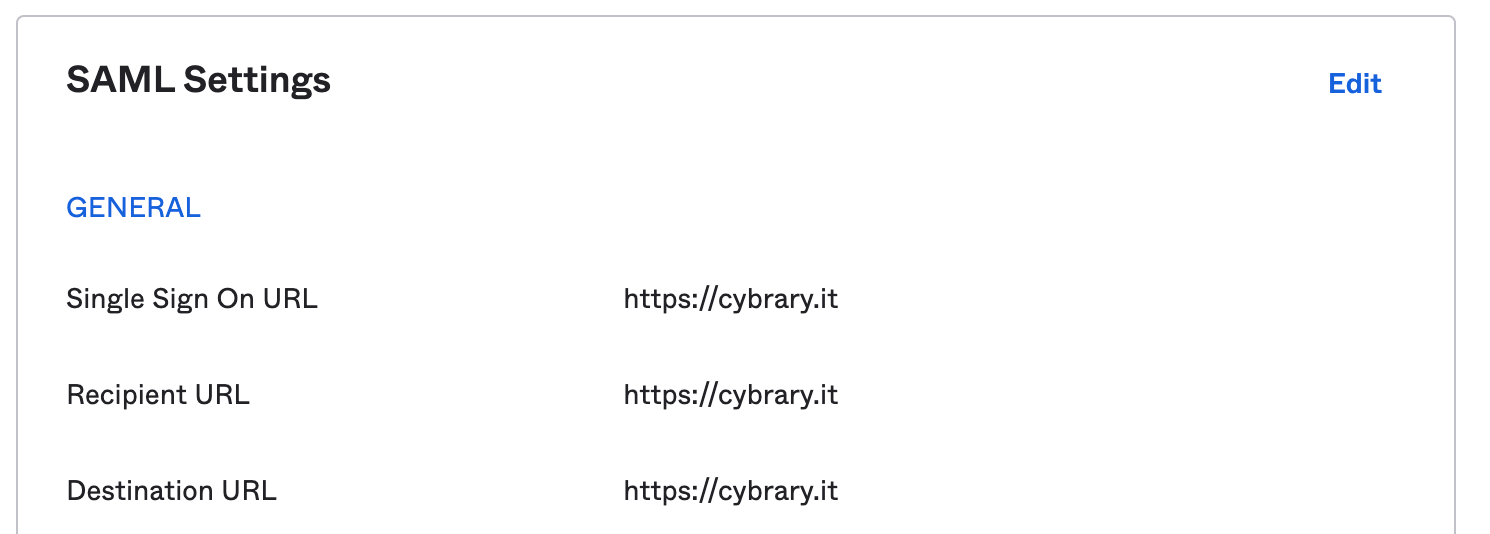

18. Scroll down to the SAML Settings section and click Edit.



19. Click Next to continue to Configure SAML.

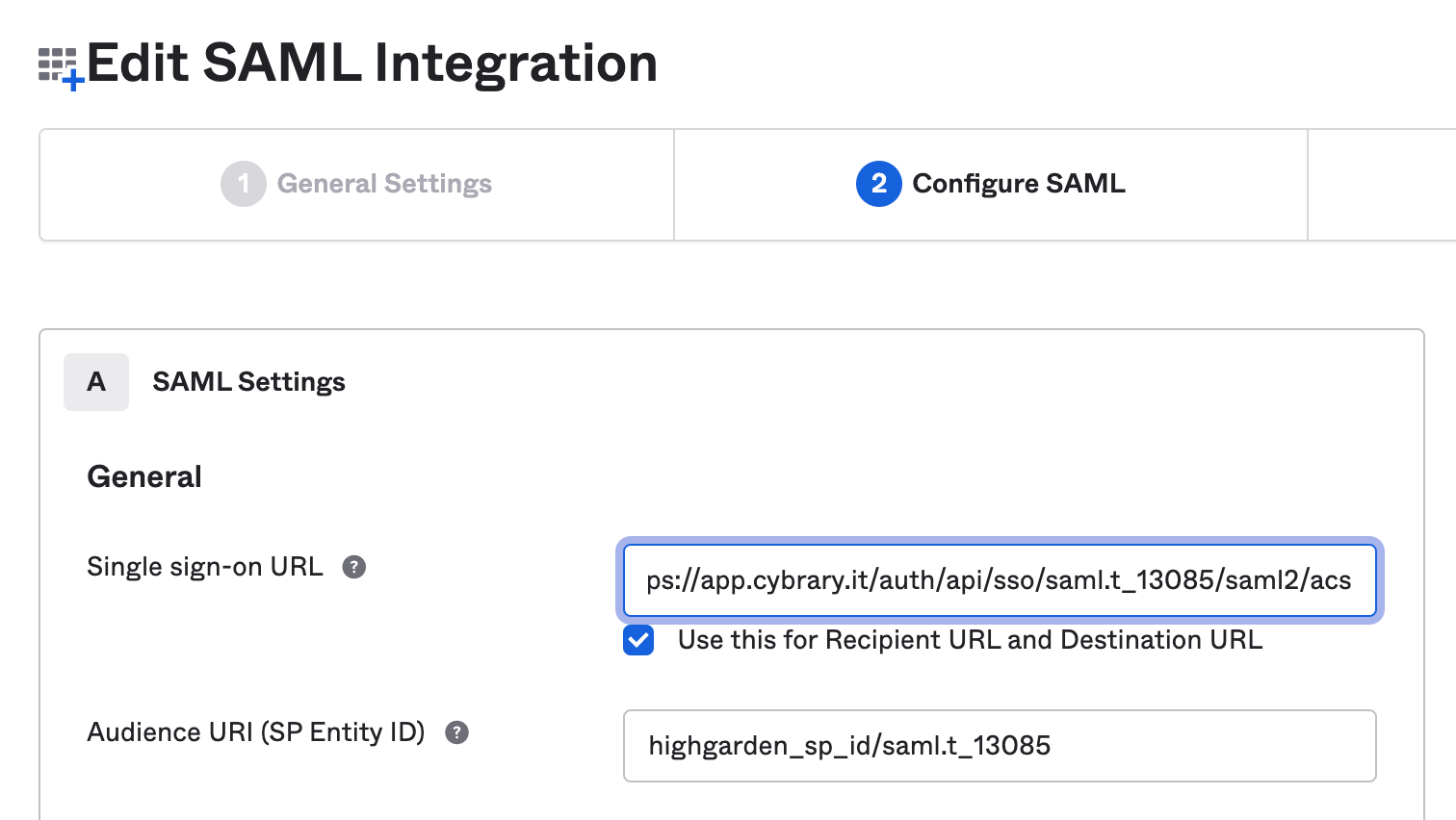

20. Update the Single sign-on URL and the Audience URI (SP Entity ID).  These values can be found back in the Cybrary page you left open in the Service Provider Configuration section.  Make sure you enter the correct value for each field by matching the field names.

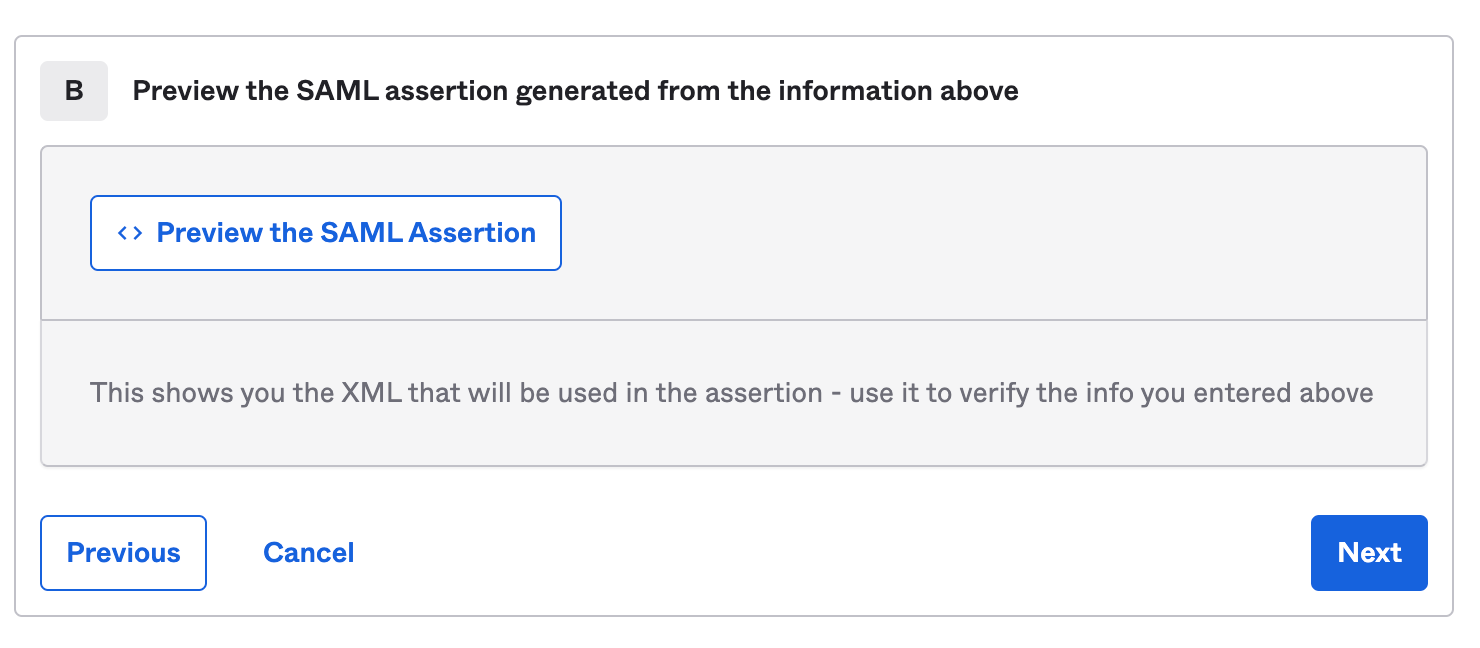

21. Scroll down to the bottom and click Next.

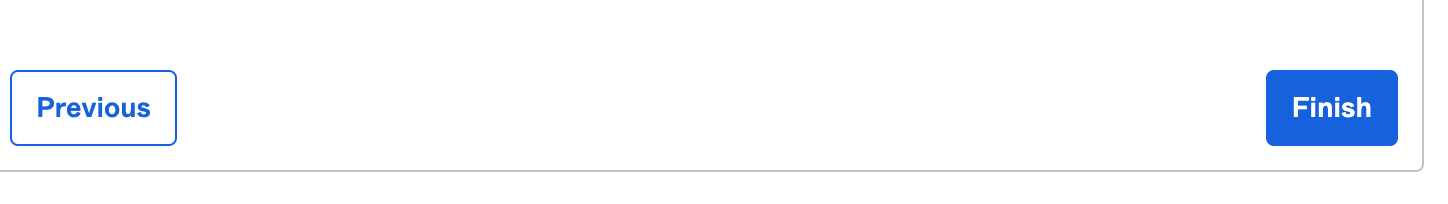

22. Scroll to the bottom and click Finish.





23. Your SSO application configuration is now complete.  Once users are assigned to the application in Okta they will be able to log in with SSO.

Configure SAML 2.0 SSO for OneLogin

Note: OneLogin instructions based on the SCIM Provisioner with SAML (SCIM v2 Core) application, layout and field names may vary for different applications.



1. Log in to app.cybrary.it and click on Teams in the top navigation



2. If you are an admin on more than one team, make sure your company’s Sandbox is selected in the drop down on the top left.  Click on Settings in the secondary to navigation.

3. In your OneLogin Application navigate to the SSO tab

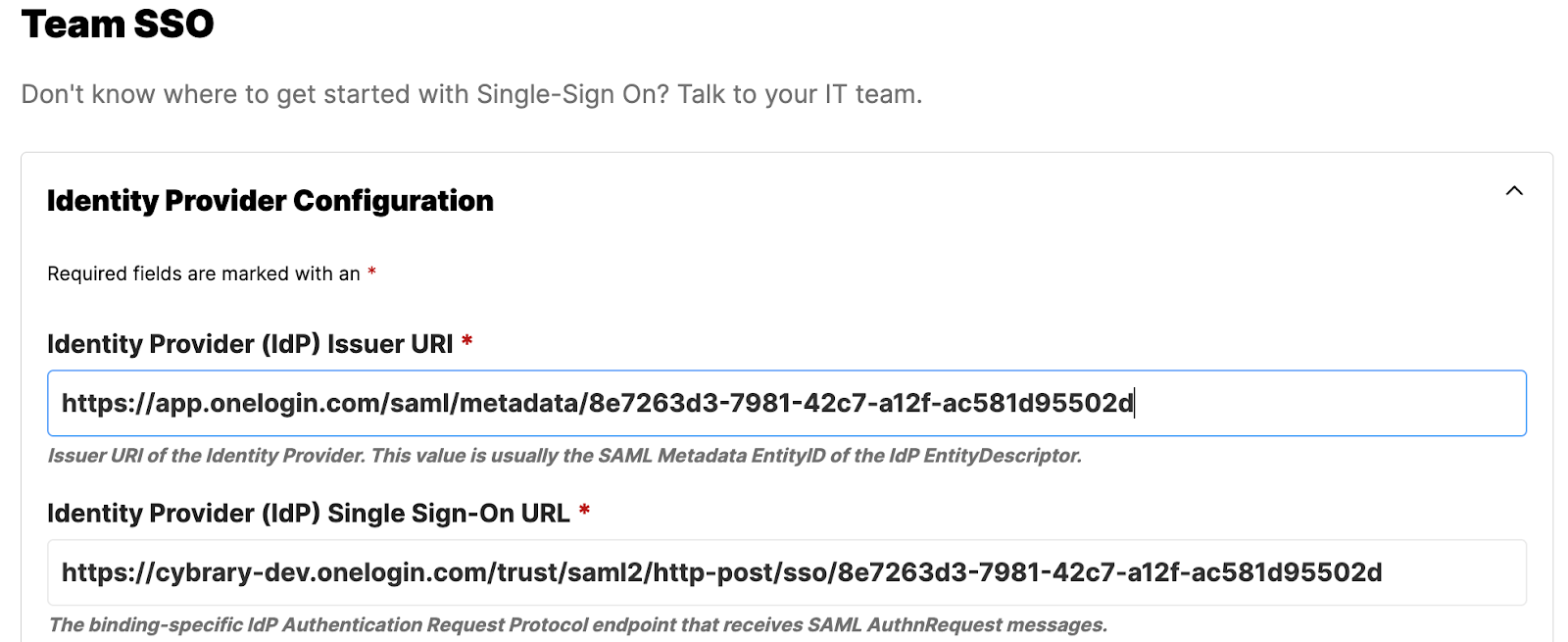

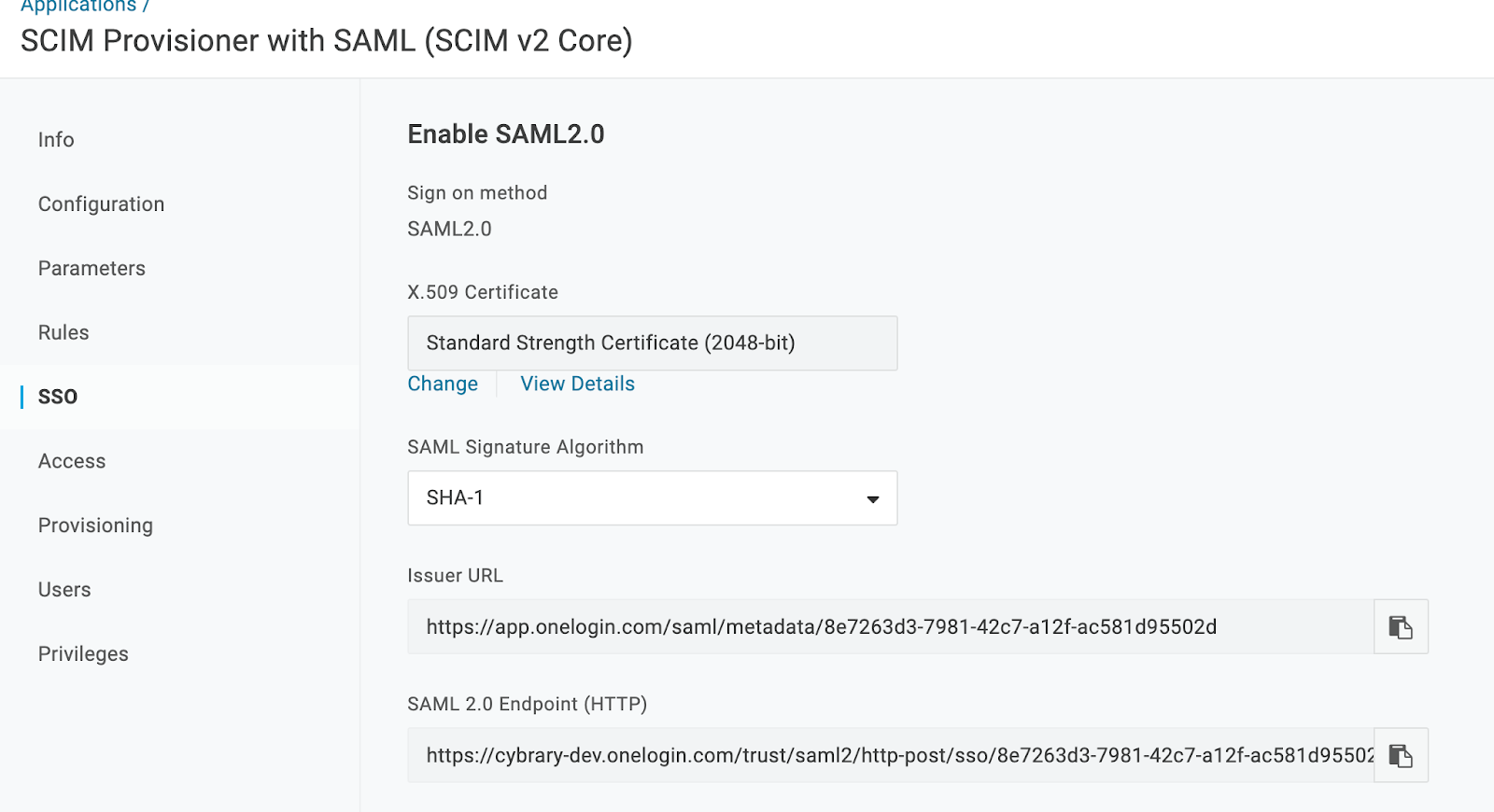

4. Back In the Cybrary App, scroll down to Identity Provider Configuration in the Team SSO section. Enter the Identity Provider (IdP) Issuer URI and the Identity Provider (IdP) Single Sign-On URL, and which can be found under Issuer URL and SAML 2.0 Endpoint (HTTP), in the OneLogin Application respectively

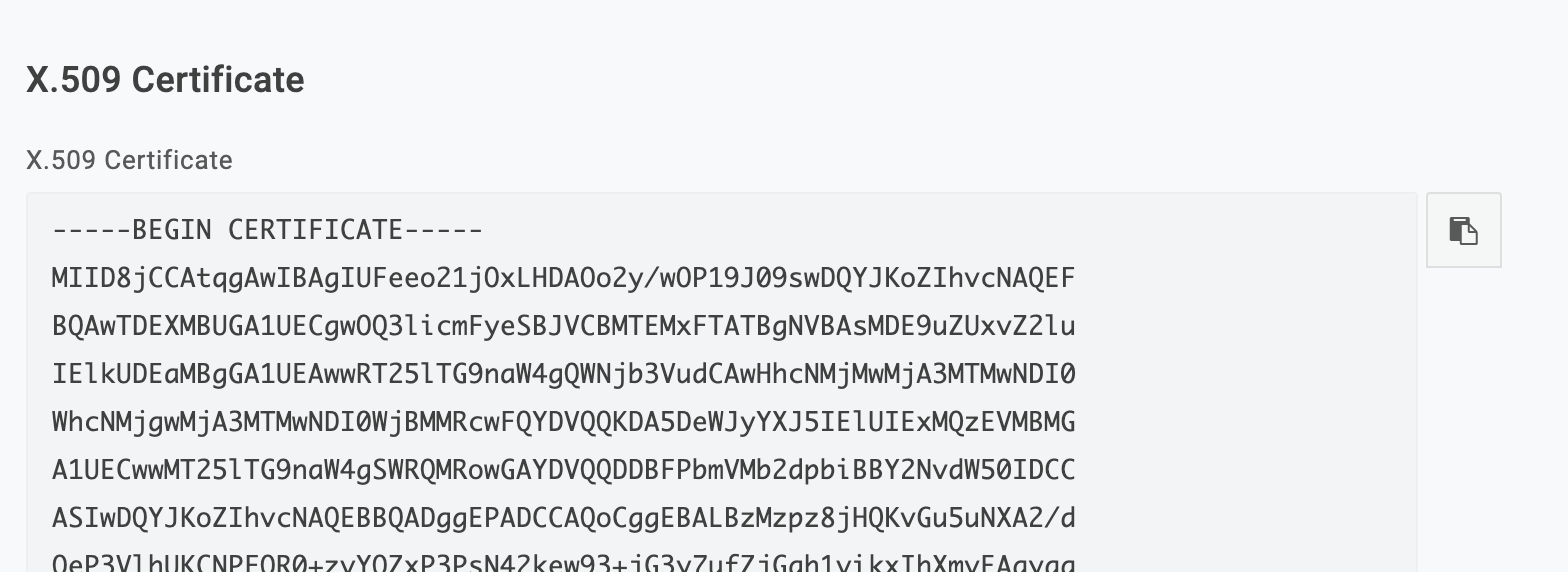

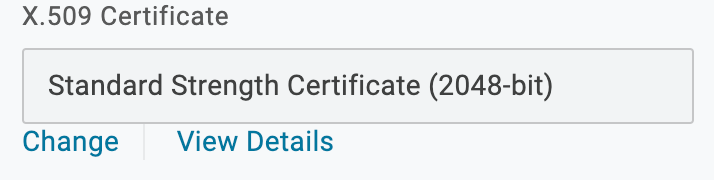

5. In the OneLogin Application click View Details under the X.509 Certificate. Copy the entire X.509 Certificate text (including -----BEGIN CERTIFICATE----- and -----END CERTIFICATE-----)





6. Paste it into the Identity Provider Signature Certificate text area in the Cybrary app.



7. Check the Sign AuthN Requests option and click Submit.  The page will refresh



8. Scroll down to the Service Provider Configuration section in the Team SSO Section

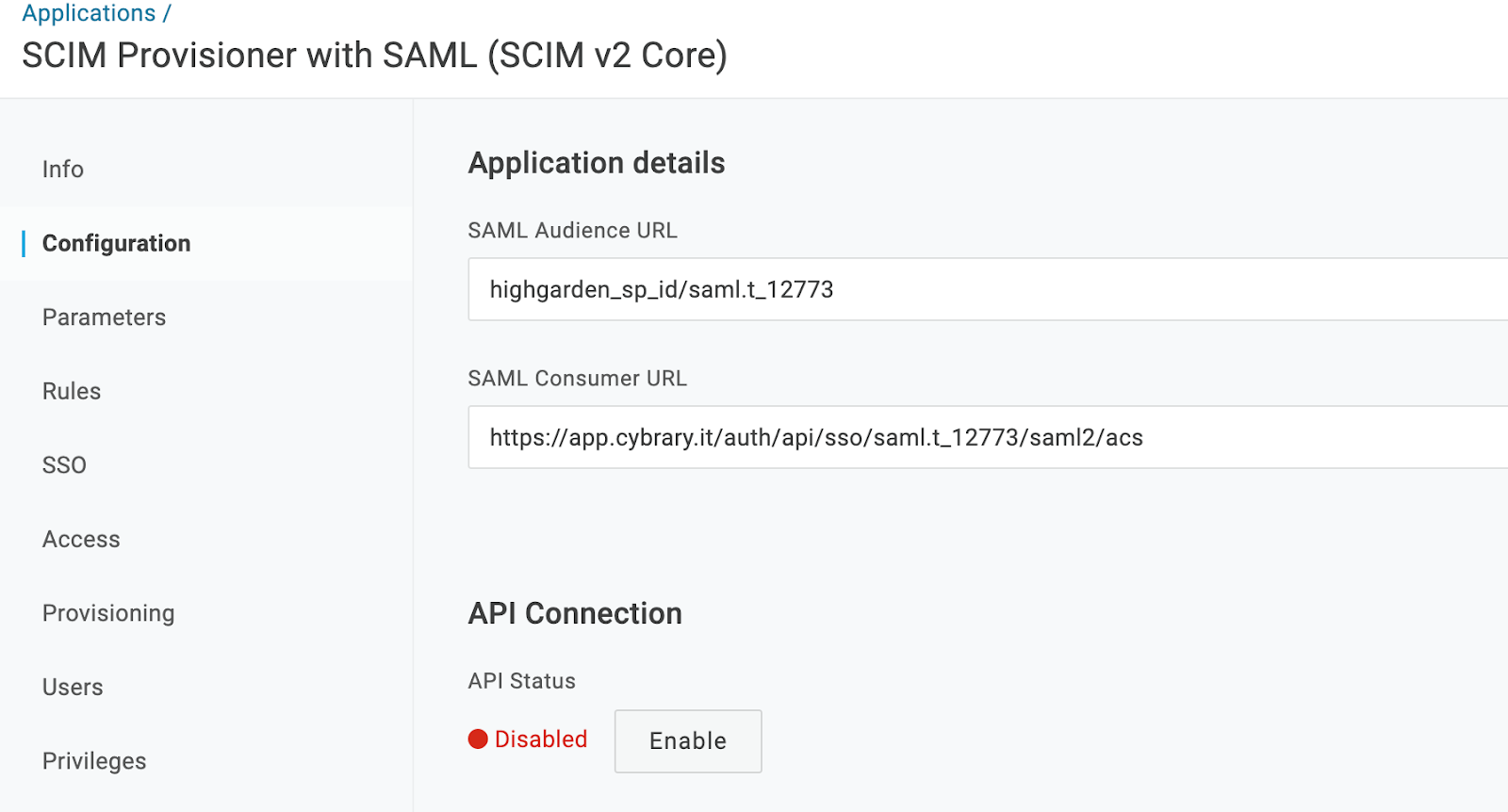

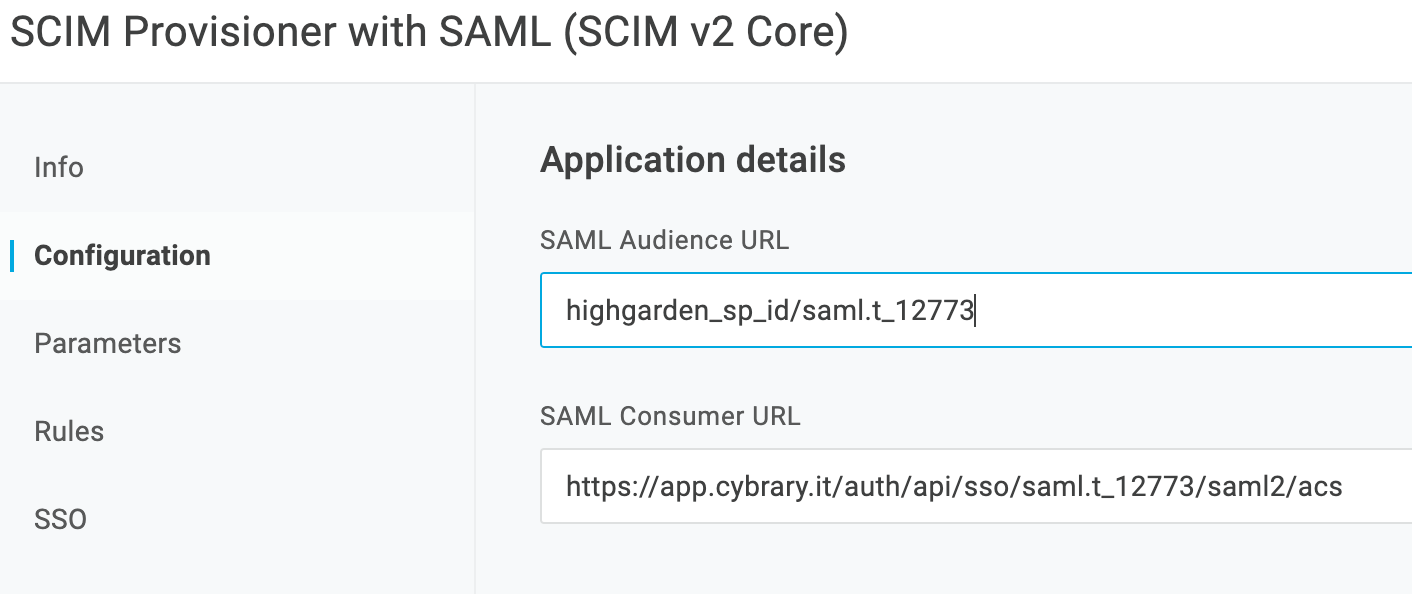

9. Copy the Audience URI and the Single Sign-On URL values to the OneLogin Application Configuration fields SAML Audience URL and SAML Consumer URL, respectively.  They can be found in the Configuration tab at the top under Application details

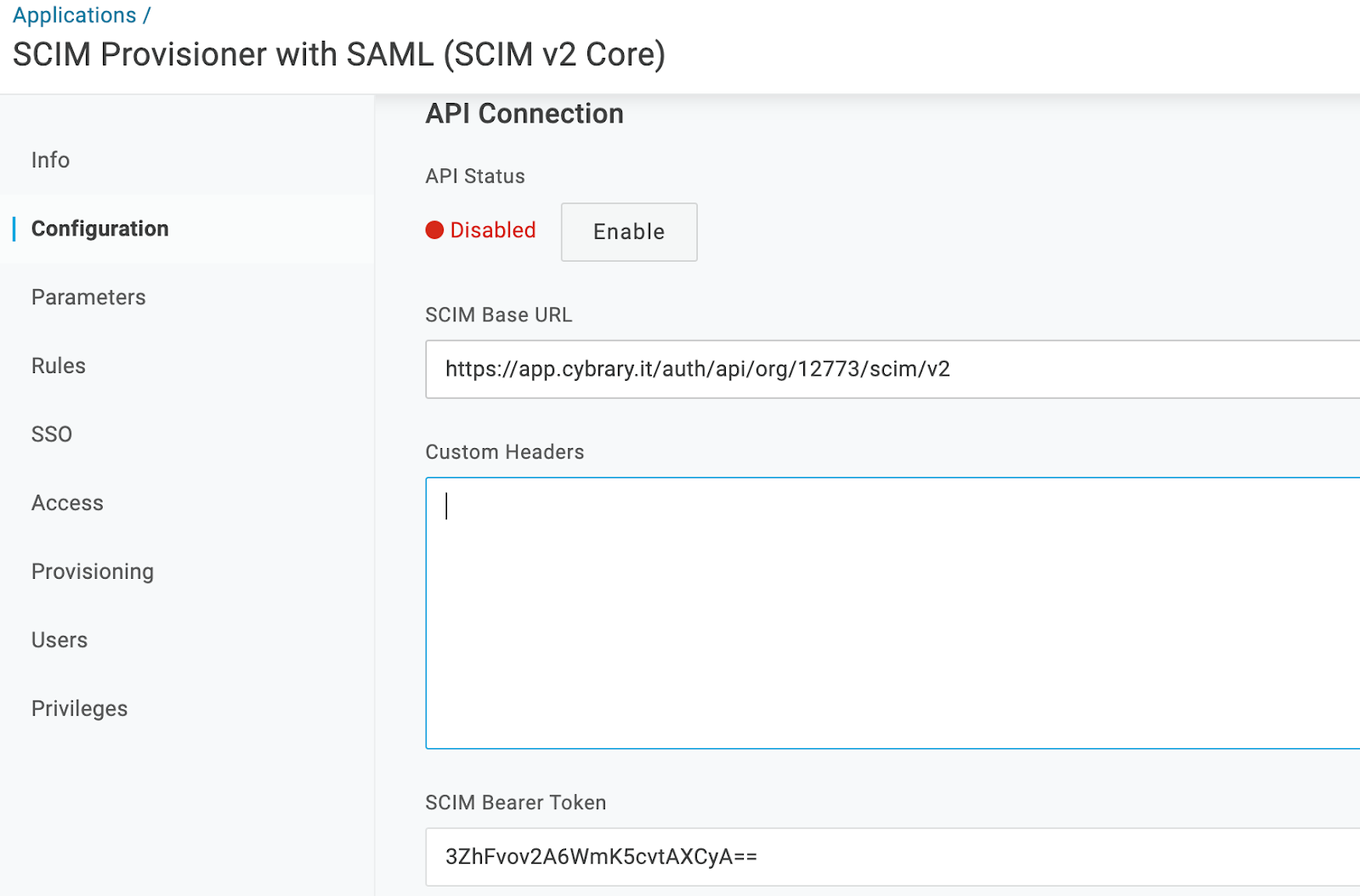

10. Further down in the OneLogin Application Configuration, under the section API Connection, we will provide the url and bearer token (it is custom for each team). Enter the provided url for the field SCIM Base URL and th provided bearer token for the SCIM Bearer Token

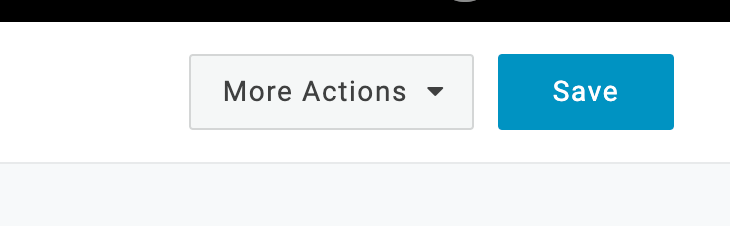

11. Save the OneLogin Application (top right)

12. In the API Connection section under API Status click Enable

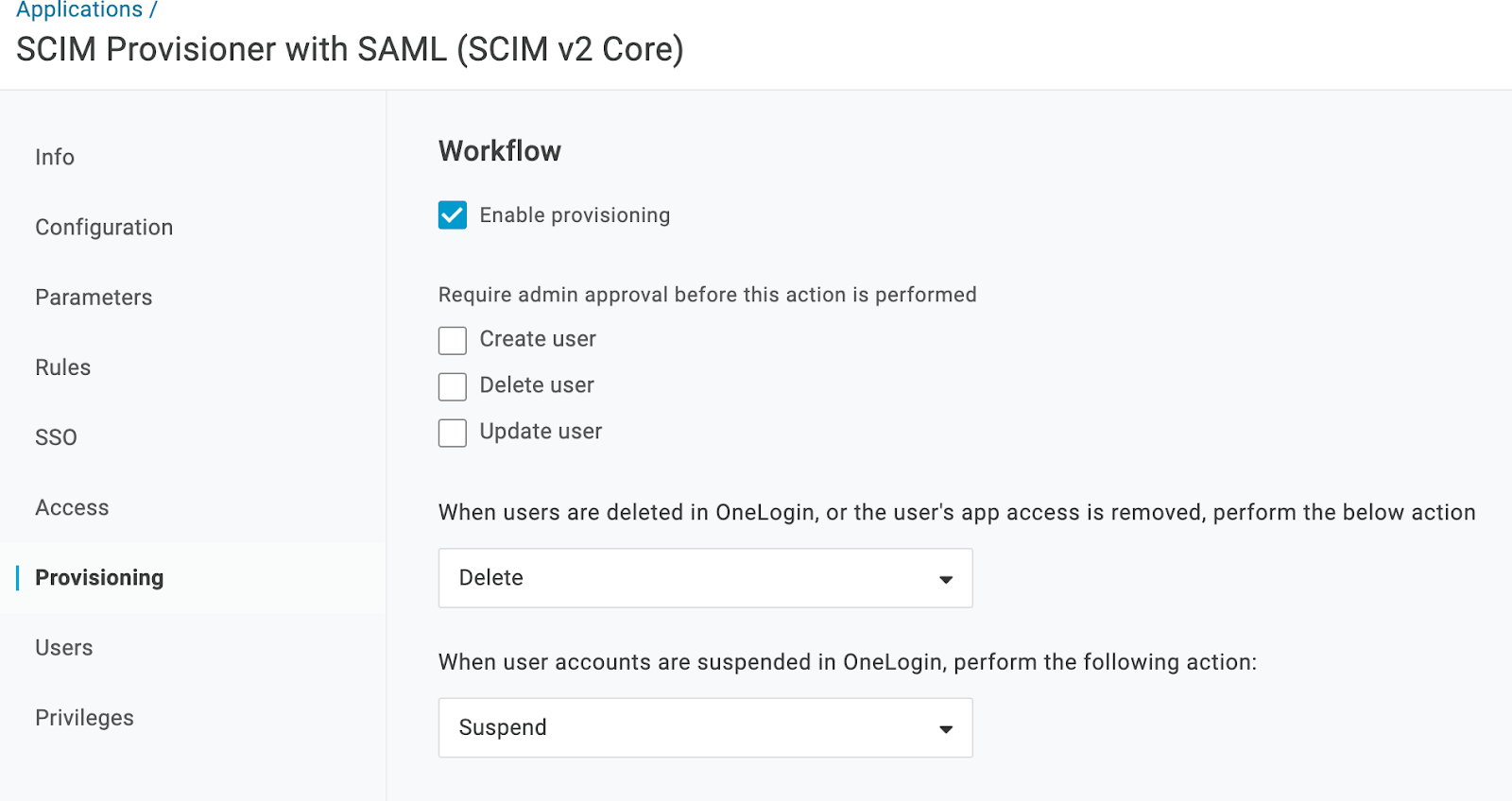

13. Click on the Provisioning tab in the OneLogin Application.  Check Enable provisioning and Save the OneLogin Application.  Configure provisioning settings as desired.  Selecting either Delete or Suspend will result in the user being removed from the team on OneLogin account deletion (first dropdown) or suspension (second dropdown)





















Configure SAML 2.0 SSO for Azure

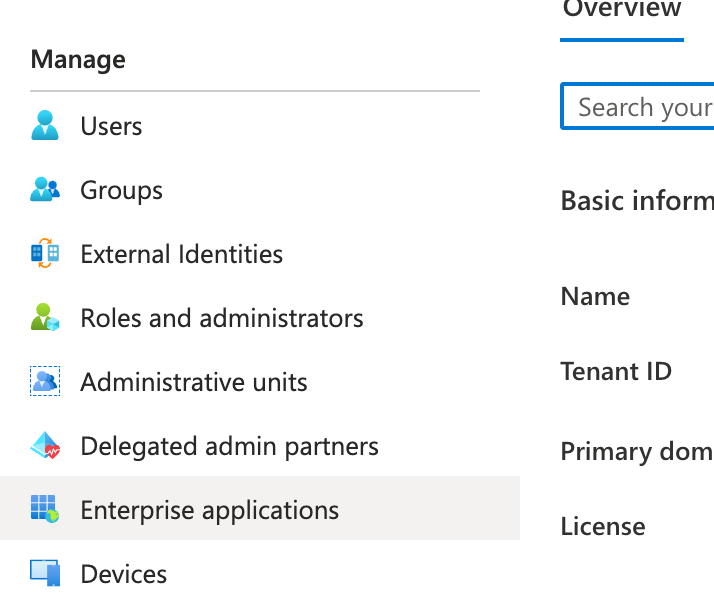

1. In Azure Active Directory select Enterprise Applications in the left nav.

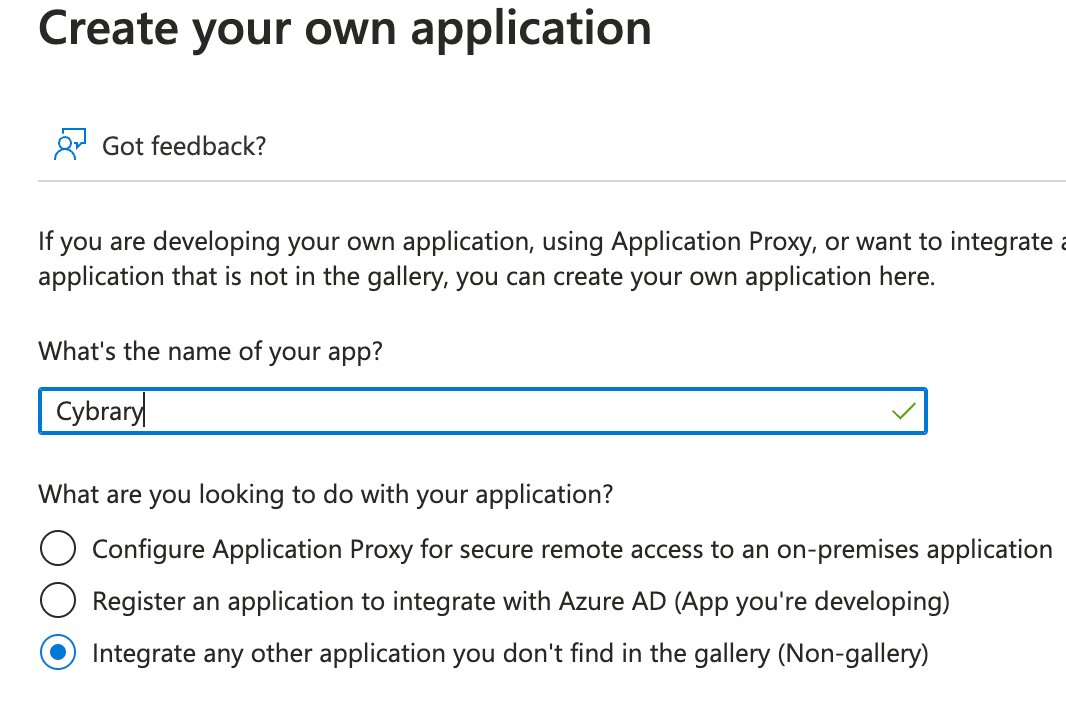

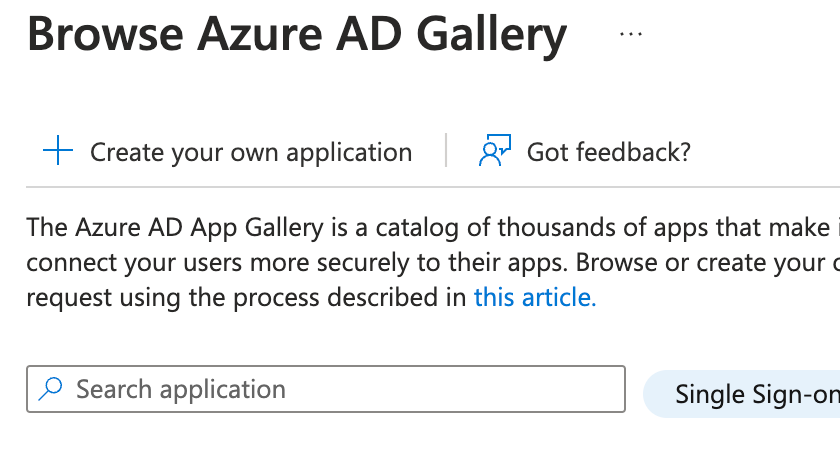

2. Select Create your own application.

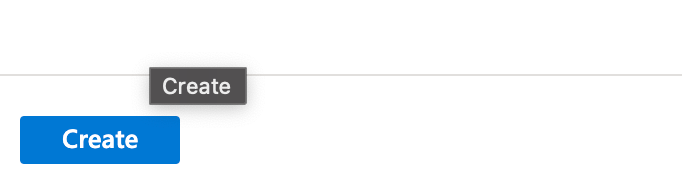

3. Enter an App name (eg. Cybrary) and select Integrate any other application.  Click Create at the bottom.

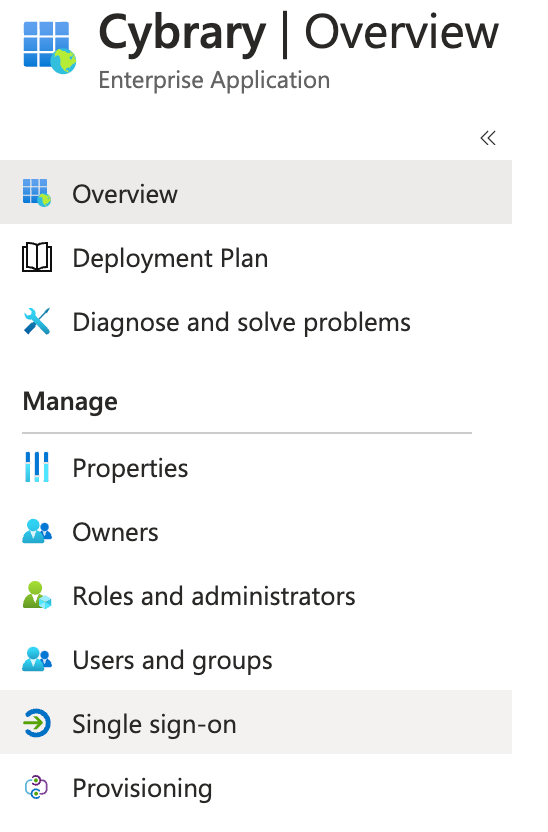

4. You will be redirected to the Overview for your new application.  Select Single sign-on in the left nav.

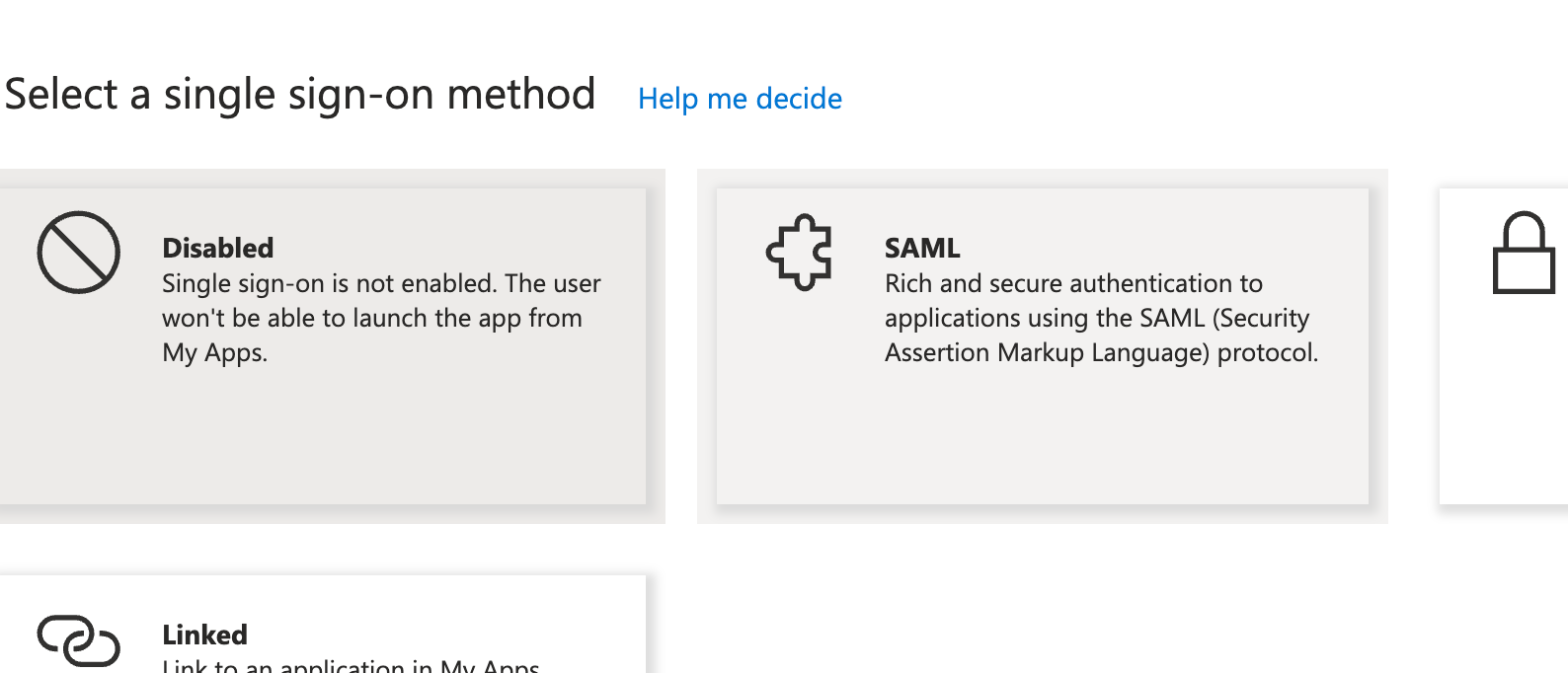

5. Select SAML for single sign-on method.

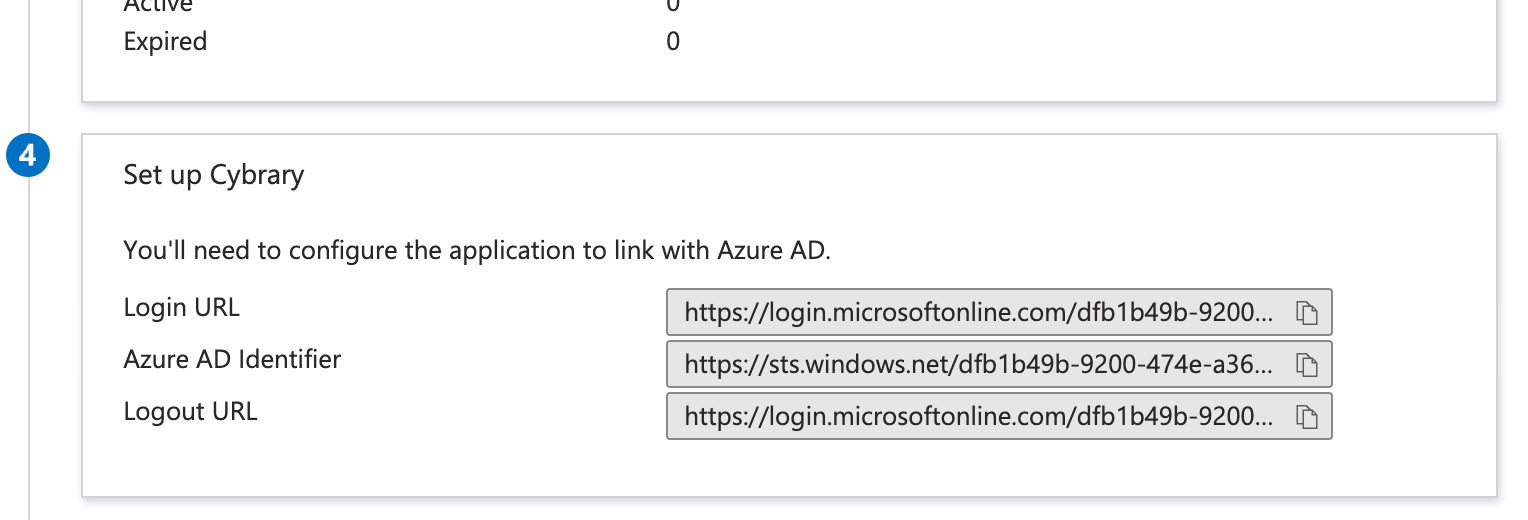

6. Scroll down to the section labeled Set up Cybrary (or the name of the application you entered in step 3). This section contains information you will need to copy over to the Cybrary app to enable SSO.  Leave it open and open a new tab/window.



7. In the new tab/window, log in to https://app.cybrary.it and click on Teams in the top navigation.



8. If you are an admin on more than one team, make sure the correct team is selected in the drop down on the top left.  Click on Settings in the secondary to navigation.



9. Scroll down to Identity Provider Configuration in the Team SSO section.

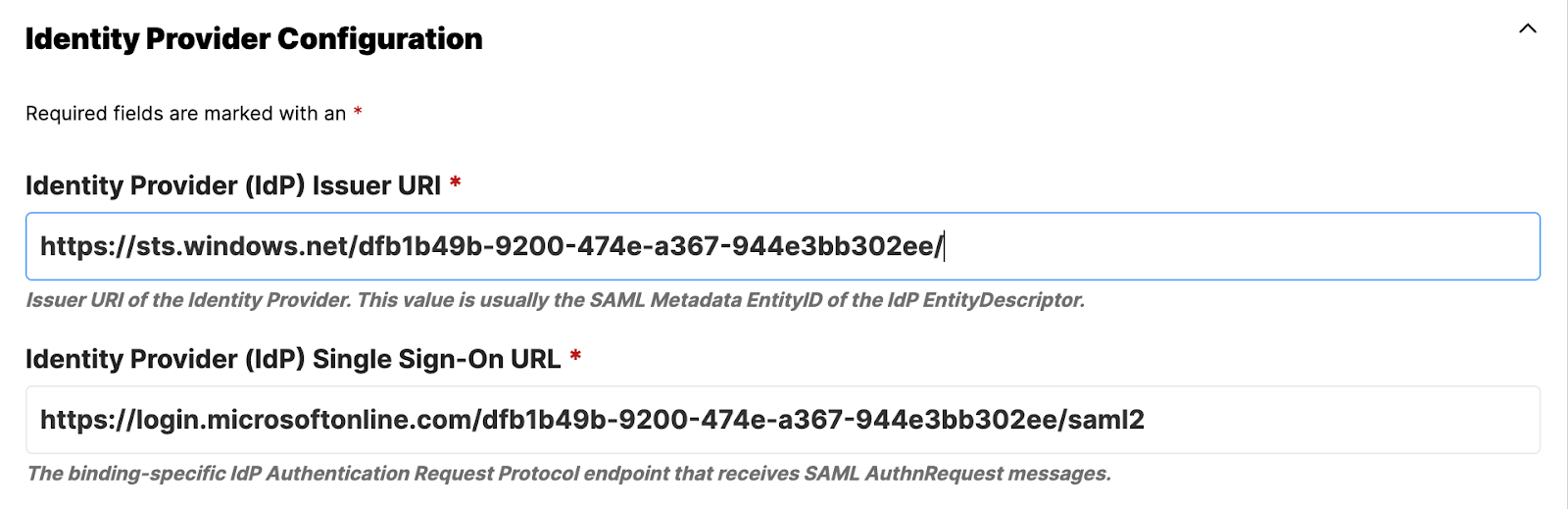

10.  Enter the Identity Provider (IdP) Issuer URI (Azure AD Identifier) and the Identity Provider (IdP) Single Sign-On URL (Login URL), which can be found in the Set up Cybrary section of the Azure page you left open.  Make sure you enter the correct value for each field by matching the field names listed above Cybrary field (Azure AD field).

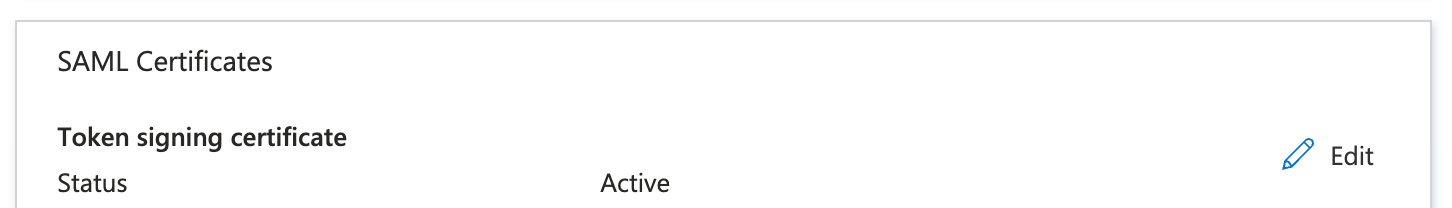

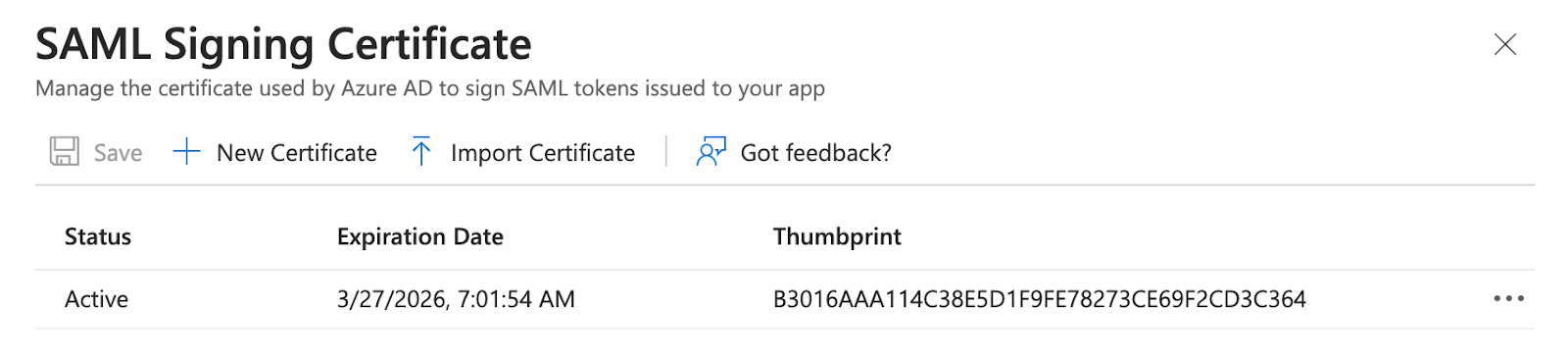

11. Back in the Azure tab, scroll up to the SAML Certificates section and click Edit.

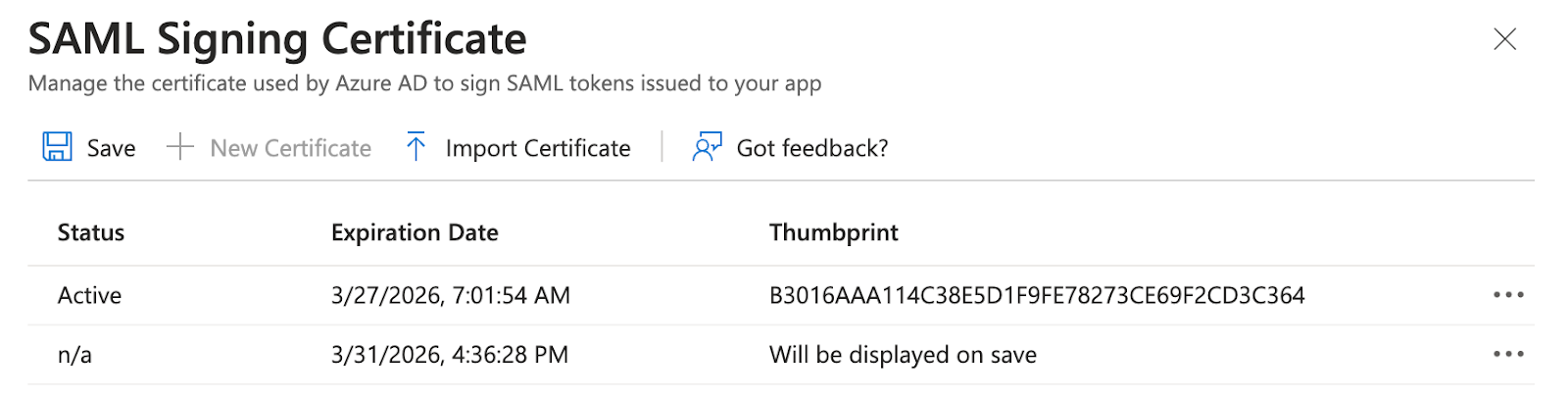

12. Click New Certificate.  A new row will appear.  Click Save.





13. Click Save.  The new certificate row will now have Status Inactive.

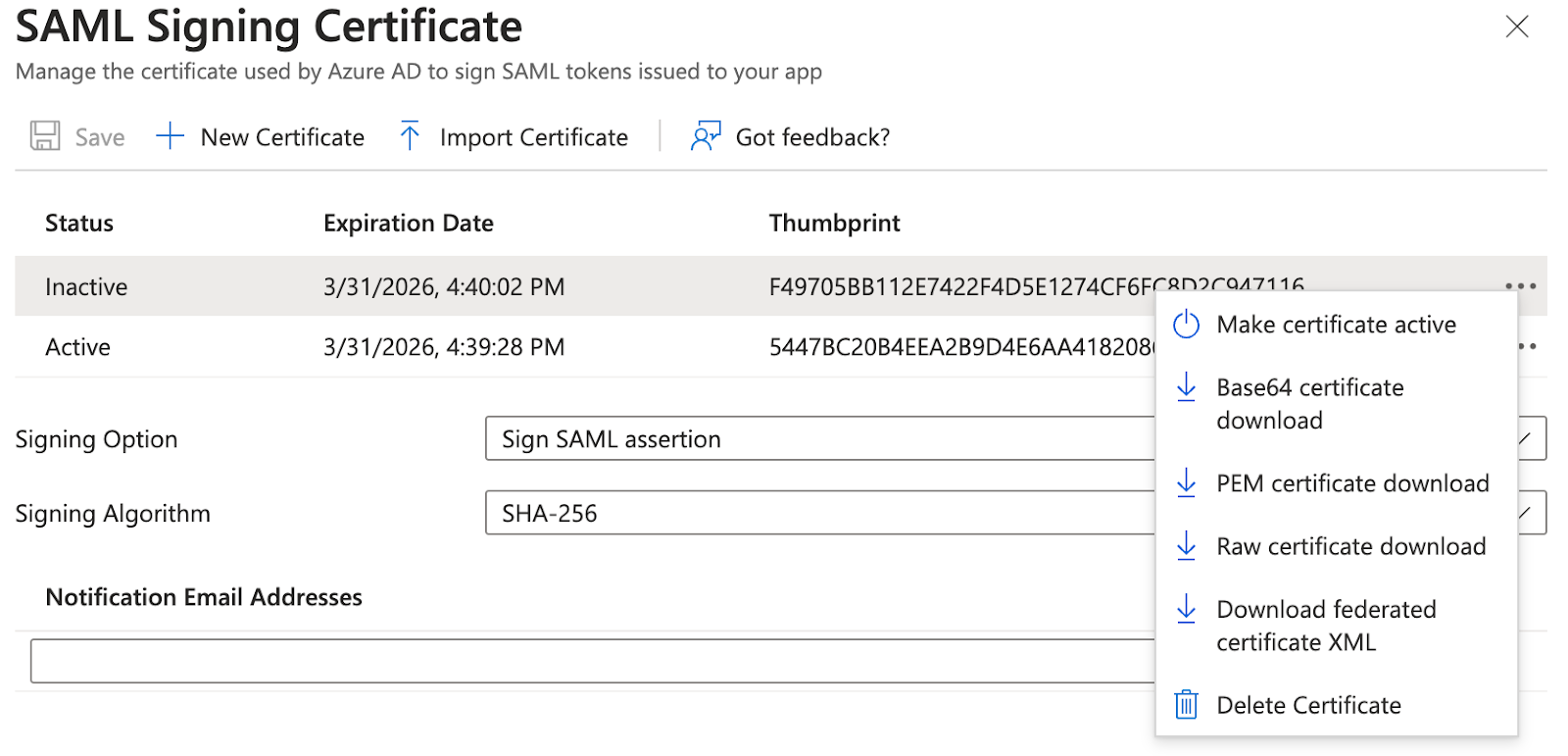

14. Click the 3 dots to the right of the new row (the one with Status Inactive).  Click Make certificate active.  Click Yes on the dialog window that appears to confirm.  The new row will now have status Active.  You may click the 3 dots of the old row (now Status Inactive) and click Delete Certificate, this certificate is not used.

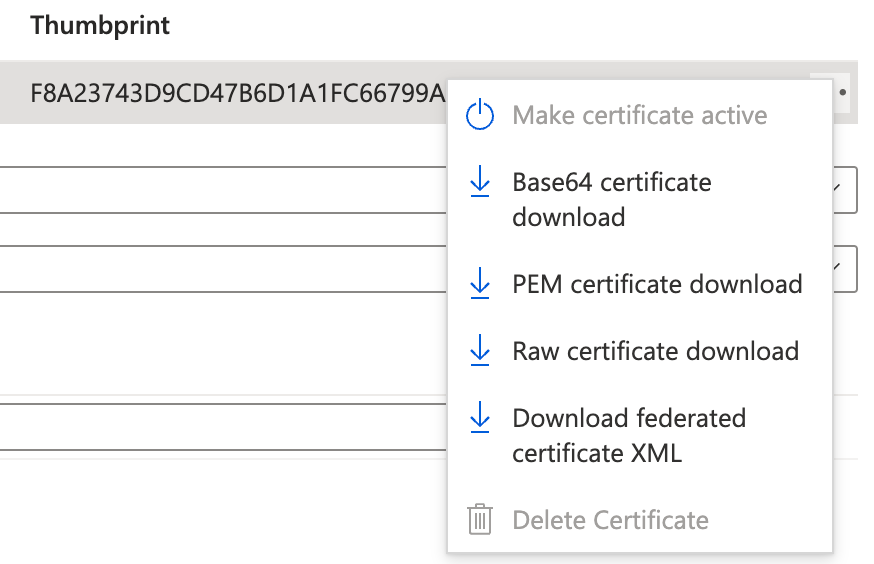

15. Click the 3 dots to the right of the new row and select Base64 certificate download.  You will need to open this file in a text editor and copy the entire contents.



16. Back in the Cybrary app, paste the certificate contents into the Identity Provider Signature Certificate text area.

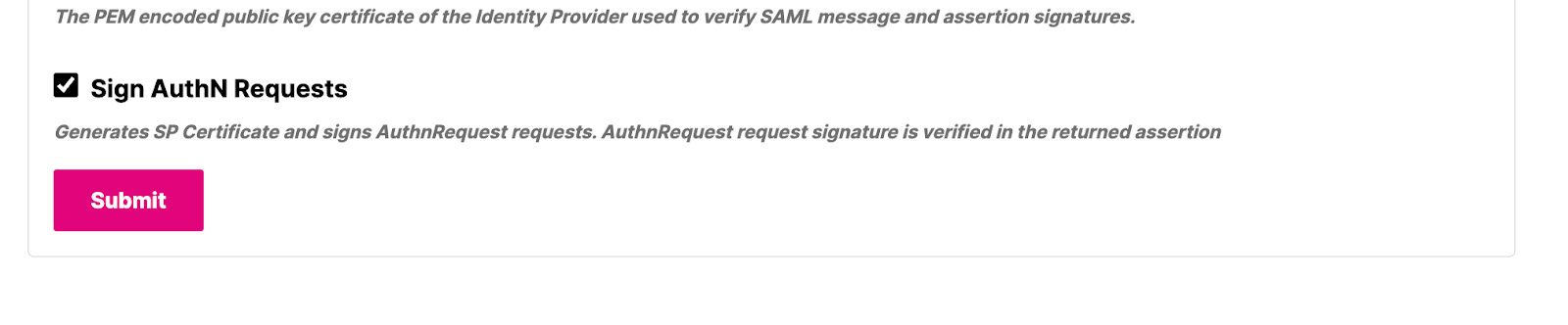

17. Check the Sign AuthN Requests option and click Submit.  The page will refresh.



18. Scroll down to the Service Provider Configuration section in the Team SSO Section.  You will need to copy these values over to the Azure AD app.  Leave this page open.

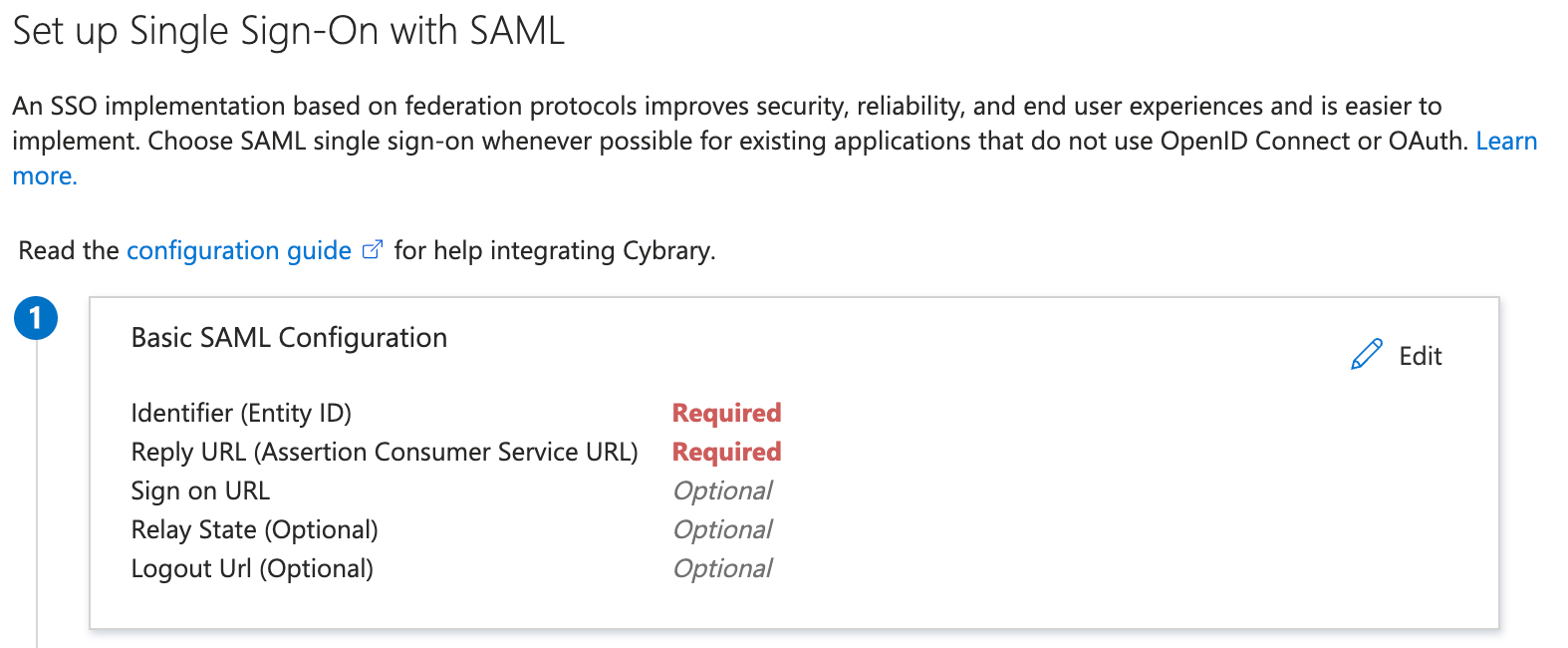

19. Back in the Azure AD SSO application configuration, close the certificate editor and scroll up to the top and find the Basic SAML Configuration section.  Click Edit.

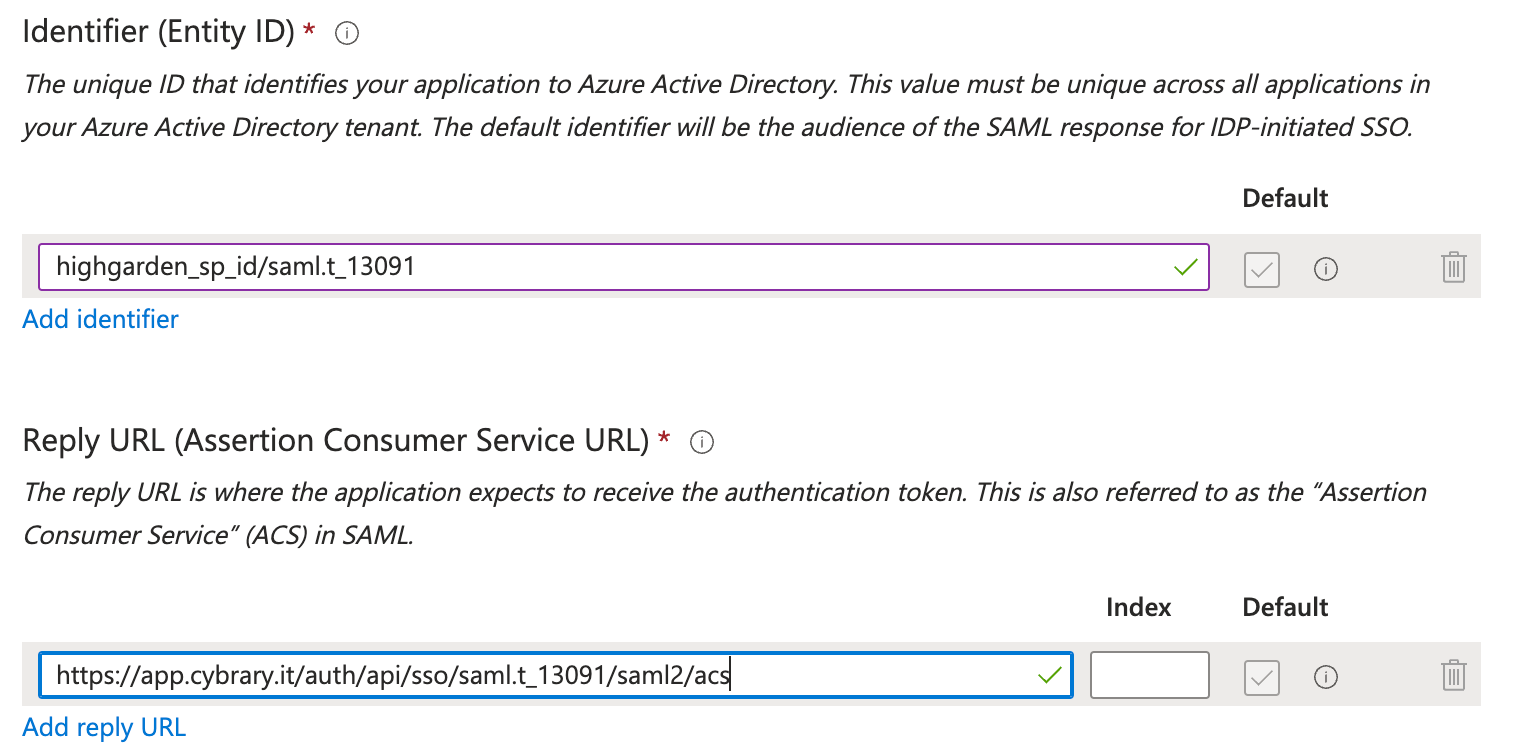

20. Click Add identifier and copy over the Audience URI value from the Cybrary app.  Click Add reply URL and copy over the Single Sign-on URL value from the Cybrary app.  Click Save at the top.

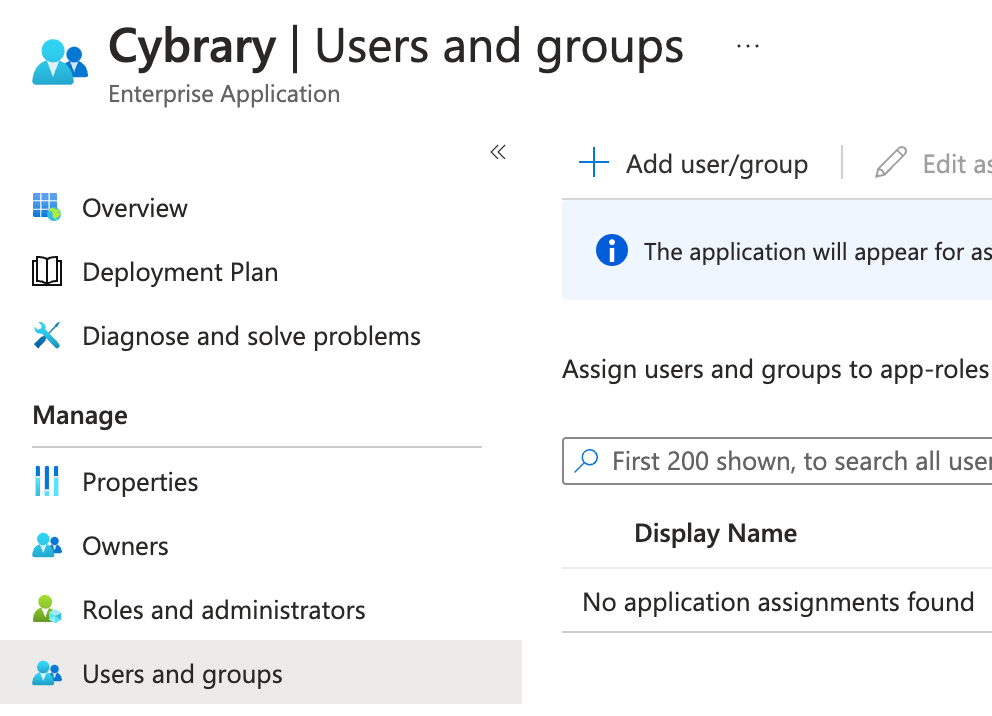

21. Your SSO application configuration is now complete, you will need to assign users to the application to test SSO with Cybrary.  You can do this by clicking Users and groups in the left nav.

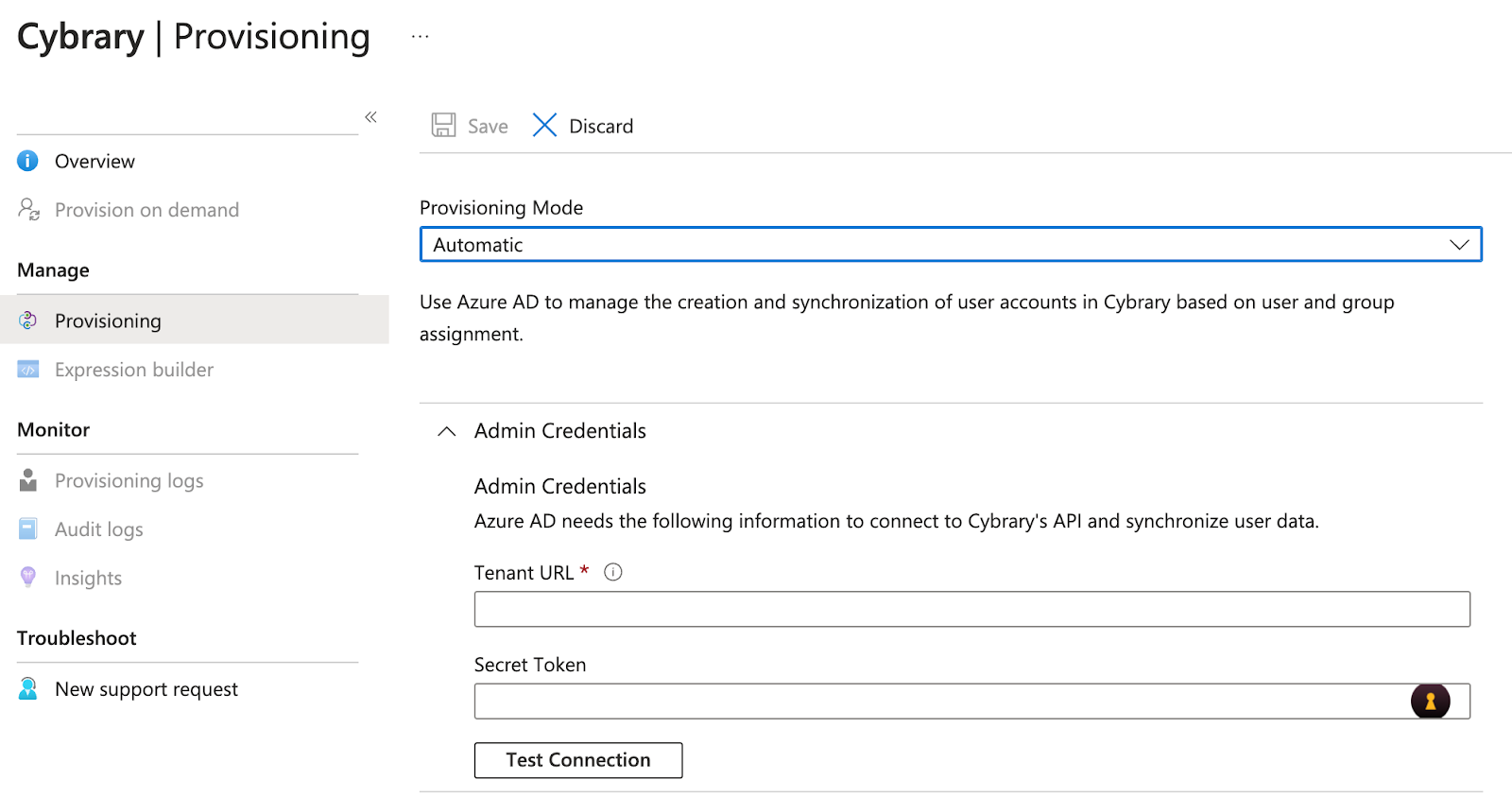

22. If you wish to enable SCIM, select Provisioning in the left nav.  Change the Provisioning Mode to Automatic.  Cybrary will provide you with the values for Tenant URL and Secret Token.  Click Save.
